PE-1812ACC101STS

Common Mode Chokes Overview

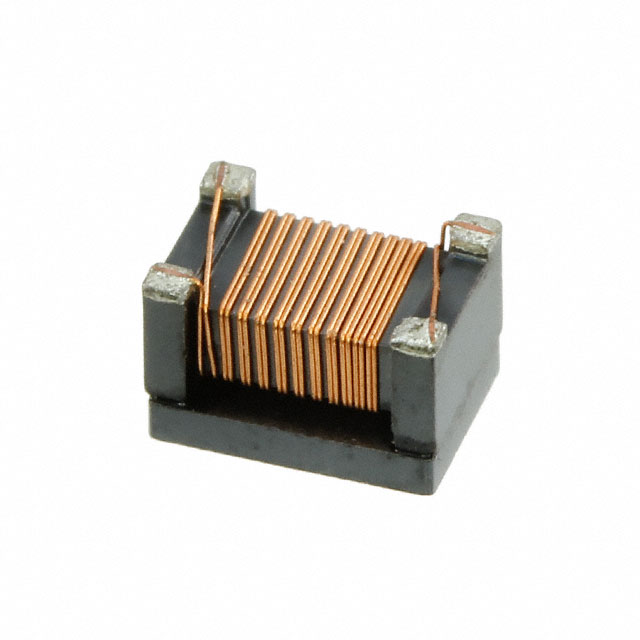

The PE-1812ACC101STS is a surface-mount common mode choke from Pulse Electronics, designed for automotive applications. It features an inductance of 100 µH and a DC resistance maximum of 2 Ohms. The component supports a maximum DC current of 200 mA and offers a common mode impedance of 7.5 kOhm at 10 MHz. It operates within a temperature range of -40°C to +125°C and complies with the AEC-Q200 qualification standard.

Common Mode Chokes Feature Summary

• AEC-Q200 qualified for automotive reliability
• High common mode impedance for noise suppression
• Compact 1812 surface-mount package

Common Mode Chokes Applications

• Automotive CAN-FD bus protection
• In-vehicle networking signal filtering
• Common mode noise suppression in automotive electronics

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix and manufacturing date code upon procurement. Confirm that the component meets the required AEC-Q200 standards for your specific automotive application. Check for any recent lifecycle status changes or obsolescence notices from Pulse Electronics before finalizing orders.

Common Mode Chokes Selection Notes

Select this component when designing for automotive environments requiring robust EMI filtering on high-speed data lines. Ensure the 200 mA current rating aligns with the operational requirements of the target circuit. The 1812 footprint should be compatible with the available PCB real estate and assembly capabilities.

Common Mode Chokes Part Context

This part belongs to the 1812 ACC series of common mode chokes from Pulse Electronics. It is specifically engineered for automotive networking applications, providing reliable performance under harsh thermal conditions. The series is designed to meet stringent industry standards for electromagnetic interference reduction in vehicle communication systems.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs by comparing electrical parameters such as inductance, DC resistance, and current ratings before considering alternative components.
