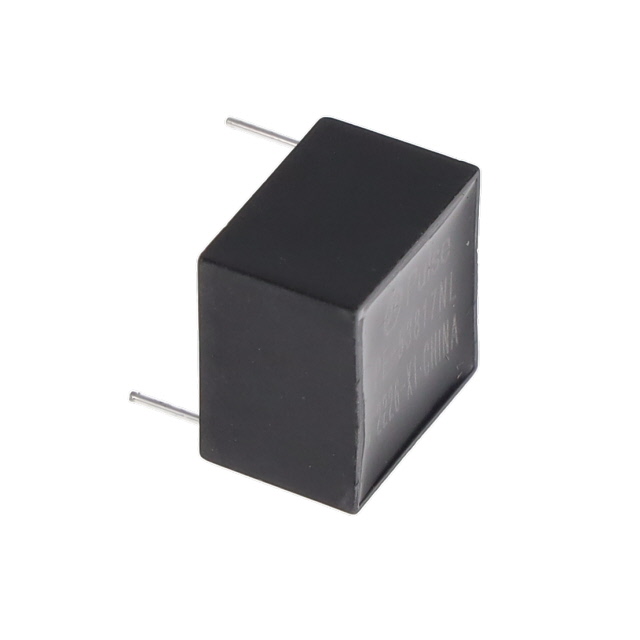

PE-53817NL is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is FIXED IND 375UH 360MA 1.3 OHM TH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PE-53817NL
- Description：FIXED IND 375UH 360MA 1.3 OHM TH
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Type：Toroidal
- Material - Core：-
- Inductance：375 µH
- Tolerance：±20%
- Current Rating (Amps)：360 mA
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：1.3Ohm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 130°C
- Inductance Frequency - Test：-
- Mounting Type：Through Hole
- Package / Case：Radial, Vertical - Corner Terminals
- Supplier Device Package：-
- Size / Dimension：0.495" L x 0.495" W (12.57mm x 12.57mm)
- Height - Seated (Max)：0.375" (9.52mm)
- Features：-
Fixed Inductors datasheet and documents for PE-53817NL
Fixed Inductors Overview
The PE-53817NL is a shielded power inductor from Pulse Electronics, designed for surface-mount applications. It features a toroidal core and radial vertical corner terminals. The component has an inductance of 375 µH with a tolerance of ±20%. It supports a saturation current of 470 mA and a DC current rating of 360 mA. The maximum DC resistance is 1.3 Ω. Operating temperature ranges from -40°C to 130°C.
Fixed Inductors Feature Summary
- Shielded toroidal construction minimizes electromagnetic interference.
- Radial vertical corner terminal configuration facilitates PCB mounting.
- Amorphous magnetic core material ensures stable performance.
Fixed Inductors Applications
- Power supply circuits
- Simple Switcher designs
- General-purpose filtering
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official datasheets to confirm electrical parameters and physical dimensions. Ensure compatibility with surface-mount assembly processes and check RoHS compliance status prior to procurement.
Fixed Inductors Selection Notes
Select this component based on the required 375 µH inductance and 1.3 Ω DCR limits. Confirm that the 360 mA continuous current rating meets the application's thermal requirements. Verify the radial vertical package fits the available PCB footprint.
Fixed Inductors Part Context
This part belongs to the Power Inductor category within Pulse Electronics' portfolio. It is specifically categorized as a Simple Switcher inductor, intended for use in switching regulator topologies requiring compact, shielded magnetic components.
Fixed Inductors Replacement Considerations
PE-53817SNL is listed as a parameter-equivalent substitute by distributors.
