PE-53914

Common Mode Chokes Overview

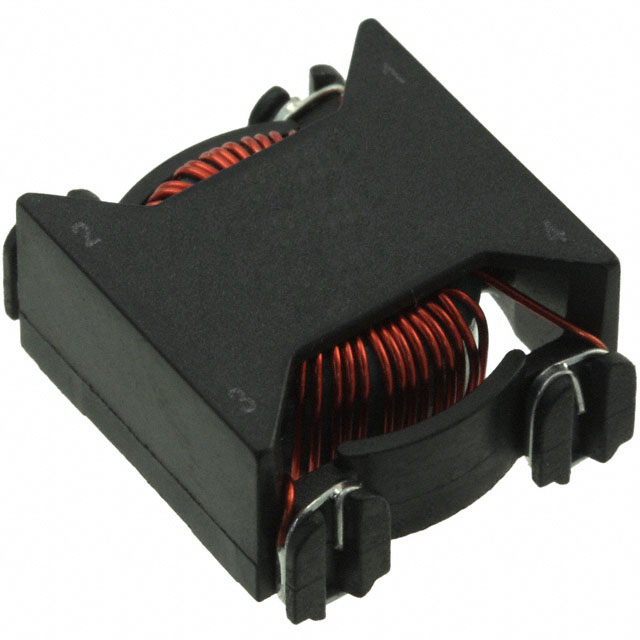

The PE-53914 is a surface-mount common mode choke from Pulse Electronics. It features an inductance of 13.2 mH and a maximum DC current rating of 500 mA. The component has a maximum DC resistance of 850 milliohms and a self-resonant frequency of 300 kHz. Physical dimensions are approximately 16.38 mm by 14.22 mm by 8.89 mm.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for differential signal lines
• Designed for surface-mount technology integration
• Constructed with two-line configuration

Common Mode Chokes Applications

• High-speed data interface filtering
• USB port protection circuits
• Signal line EMI suppression

Common Mode Chokes Procurement Notes

Verify the exact part number suffix when ordering, as packaging options may vary. Confirm that the standard lead-free status meets specific project requirements. Ensure the selected variant matches the required reel or cut tape specifications for automated assembly processes.

Common Mode Chokes Selection Notes

Select this component based on its 13.2 mH inductance value suitable for low-frequency noise attenuation. The 500 mA current rating must accommodate the operational load without saturation. Verify footprint compatibility with the PCB layout constraints given the specific package dimensions.

Common Mode Chokes Part Context

This component belongs to the PE-XXXXNL series of SMT common mode inductors manufactured by Pulse Electronics. These parts are designed for compact electronic designs requiring effective electromagnetic interference reduction in space-constrained applications.

Common Mode Chokes Replacement Considerations

The PE-53914NLT is a verified substitute offering identical electrical characteristics with optional tape and reel packaging. Verify mechanical fit before substitution.
