PE-62892NL

Common Mode Chokes Overview

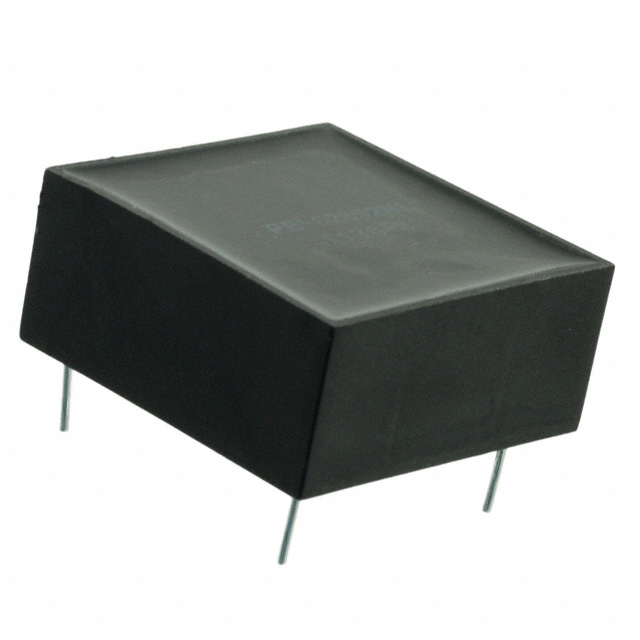

The PE-62892NL is a through-hole common mode choke manufactured by Pulse Electronics. It features an inductance of 3 mH measured at 1 kHz and supports a current rating of 3.5 A with a DC resistance of 60 mOhm. Designed for EMI filtering in power line applications, this component serves AC/DC power supplies, industrial equipment, and consumer electronics.

Common Mode Chokes Feature Summary

• Provides effective electromagnetic interference suppression for dual-line configurations
• Supports high current handling capabilities suitable for power line environments

Common Mode Chokes Applications

• EMI filtering in AC/DC power supplies
• Noise reduction in industrial equipment
• Signal integrity enhancement in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and thermal ratings before integration. Ensure that the through-hole mounting style aligns with the target PCB layout requirements. Confirm compliance with relevant environmental standards such as RoHS if applicable to the final product design.

Common Mode Chokes Selection Notes

Select this component when dual-line common mode noise suppression is required in power circuits. The 3.5 A current rating makes it suitable for moderate power applications. Verify that the 60 mOhm DC resistance meets the efficiency constraints of the specific power supply topology being implemented.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics common mode choke family, designed for signal and power line filtering. It utilizes a toroidal or similar core structure to maximize inductance while minimizing size. The through-hole construction ensures robust mechanical stability in high-vibration environments compared to surface mount alternatives.

Common Mode Chokes Replacement Considerations

Consult official substitution lists from Pulse Electronics for direct equivalents. Verify that any alternative maintains the 3 mH inductance and 3.5 A current rating to ensure circuit compatibility.
