PE-62893NL

$6.13

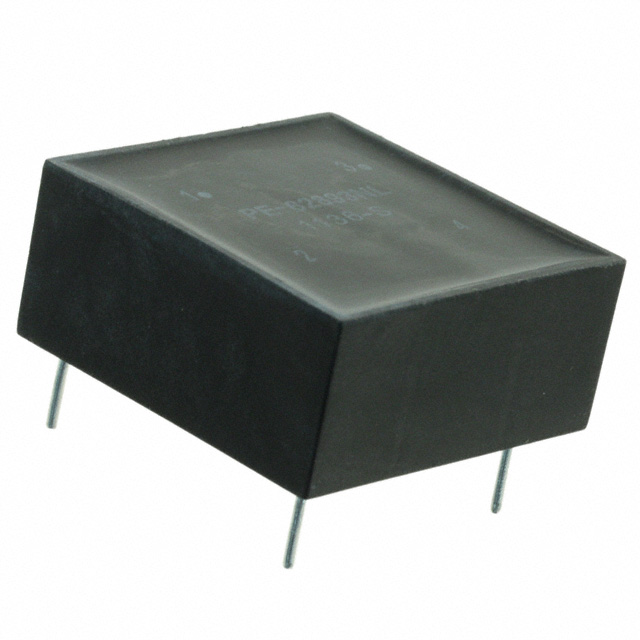

Description：CMC 1MH 6A 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:a8010f1ef123 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE-62893NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 1MH 6A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PE-62893NL

Description：CMC 1MH 6A 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：20mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
Height (Max)：0.610" (15.49mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：1 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PE-62893NL

PE-62893NL

Common Mode Chokes Overview

The PE-62893NL is a dual-line common mode choke manufactured by Pulse Electronics, designed for through-hole mounting. It features an inductance of 1 mH at 1 kHz and supports a maximum DC current of 6 A with a maximum DC resistance of 20 mOhms. The component operates within a temperature range of -40°C to +130°C and utilizes a horizontal package with four PC pins.

Common Mode Chokes Feature Summary

Dual-line configuration for effective common mode noise suppression
High current handling capability suitable for power line applications
Through-hole construction for robust PCB integration

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in AC/DC converters
Signal integrity protection in industrial equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for exact pinout dimensions and thermal derating curves before finalizing the design. Confirm RoHS compliance status with the manufacturer or authorized distributor as regulatory requirements may vary by production batch. Ensure the selected packaging quantity aligns with assembly line requirements.

Common Mode Chokes Selection Notes

Select this component when high current capacity is required alongside significant common mode noise attenuation. The low DC resistance minimizes power loss in high-current paths. Evaluate the physical footprint constraints against the horizontal four-pin package dimensions to ensure adequate clearance on the target printed circuit board layout.

Common Mode Chokes Part Context

This part belongs to Pulse Electronics' common mode choke series, which focuses on electromagnetic interference reduction in electronic circuits. These components are engineered to maintain signal integrity while blocking unwanted high-frequency noise, making them essential for meeting regulatory emission standards in various electronic devices.
