PE-62895NL

Common Mode Chokes Overview

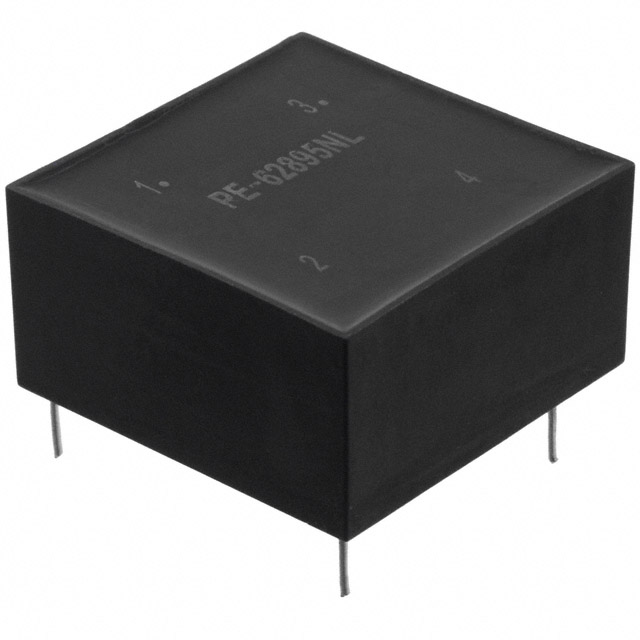

The PE-62895NL is a through-hole common mode choke manufactured by Pulse Electronics. It features an 8 mH inductance rating and supports a maximum current of 3.2 A. The component utilizes a horizontal package with four pin terminals for PCB mounting. It operates within a temperature range of -40°C to +125°C. This device is designed for signal line filtering applications, providing effective common mode noise suppression in electronic circuits.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for signal lines
• Supports high current handling up to 3.2 A
• Features through-hole radial termination for secure PCB mounting

Common Mode Chokes Applications

• Signal line filtering
• RF circuit noise suppression
• Common mode interference reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before procurement to ensure compatibility with design requirements. Confirm that the through-hole package dimensions align with the target PCB footprint. Check RoHS compliance status as indicated in official documentation. Ensure the operating temperature range meets the environmental conditions of the final application.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode chokes for signal integrity. The 8 mH inductance offers significant attenuation for common mode noise. The 3.2 A current rating suits applications with moderate power demands. Consider the horizontal package profile for space-constrained layouts requiring through-hole assembly.

Common Mode Chokes Part Context

This part belongs to Pulse Electronics' portfolio of passive components, specifically within the common mode choke category. It is engineered for reliability in various electronic assemblies. The manufacturer provides ECAD models to facilitate integration into schematic and layout tools. Documentation includes detailed electrical specifications and mechanical drawings.

Common Mode Chokes Replacement Considerations

Consult official substitution lists from Pulse Electronics for verified alternatives. Cross-reference inductance, current rating, and package dimensions when evaluating substitutes. Ensure any replacement maintains equivalent performance characteristics for the intended application.
