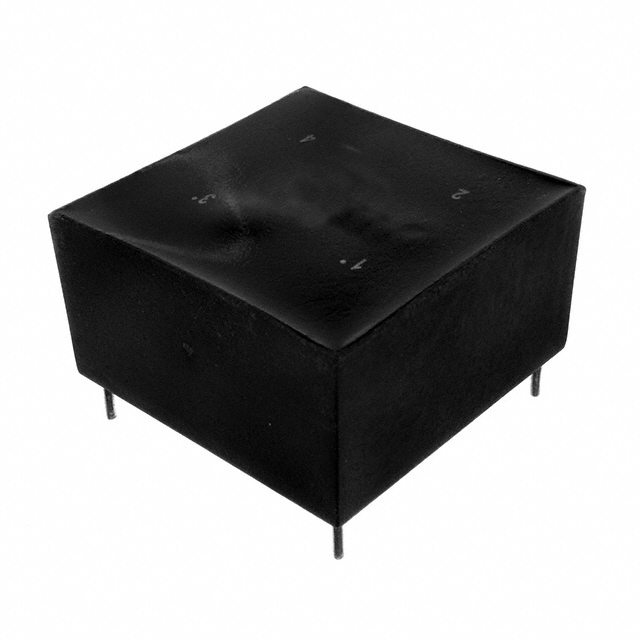

PE-62897 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 2MH 7.5A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-62897
- Description：CMC 2MH 7.5A 2LN TH
- Series：-
- Mfr：Pulse Electronics
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：7.5A
- DC Resistance (DCR) (Max)：20mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.500" L x 1.500" W (38.10mm x 38.10mm)
- Height (Max)：0.810" (20.57mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：2 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-62897
Common Mode Chokes Overview
The PE-62897 is a common mode EMI suppression inductor manufactured by Pulse Electronics. It features an inductance of 2 mH at 1 kHz and a maximum DC resistance of 20 mOhms. The component supports a maximum current rating of up to 7.5 A. It operates within a temperature range of -40°C to +130°C. The device utilizes a through-hole mounting style with radial termination for PCB integration.
Common Mode Chokes Feature Summary
- Provides common mode EMI suppression for signal integrity
- Supports high-power motor control applications
- Ensures stable switching characteristics under load
Common Mode Chokes Applications
- High-power motor control cabinets
- RF circuit filtering
- EMI suppression in industrial electronics
Common Mode Chokes Procurement Notes
Verify the specific suffix (e.g., NL) against the datasheet, as it may indicate packaging or material variations. Confirm RoHS compliance status directly from the manufacturer's documentation. Ensure the operating temperature range meets the environmental requirements of the target application before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component when a 2 mH common mode choke is required for EMI filtering in power circuits. Consider the 7.5 A current rating and low DCR for efficiency. Verify that the through-hole package fits the board layout constraints. Compare thermal performance specifications against the expected ambient conditions.
Common Mode Chokes Part Context
This part belongs to the common mode chokes category from Pulse Electronics. It is designed for EMI suppression in electronic systems. The product line focuses on inductors for noise reduction in power and signal lines. It serves as a passive component for maintaining signal quality in noisy environments.
Common Mode Chokes Replacement Considerations
Check for direct substitutes with identical 2 mH inductance and similar current ratings. Verify pin compatibility for through-hole mounting. Ensure replacement parts meet the same temperature and RoHS standards.
