PE-62897NL

$7.00

Description：CMC 2MH 7.5A 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:d837c7a21c91 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE-62897NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 2MH 7.5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PE-62897NL

Description：CMC 2MH 7.5A 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：7.5A
DC Resistance (DCR) (Max)：20mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.500" L x 1.500" W (38.10mm x 38.10mm)
Height (Max)：0.810" (20.57mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：2 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PE-62897NL

PE-62897NL

Common Mode Chokes Overview

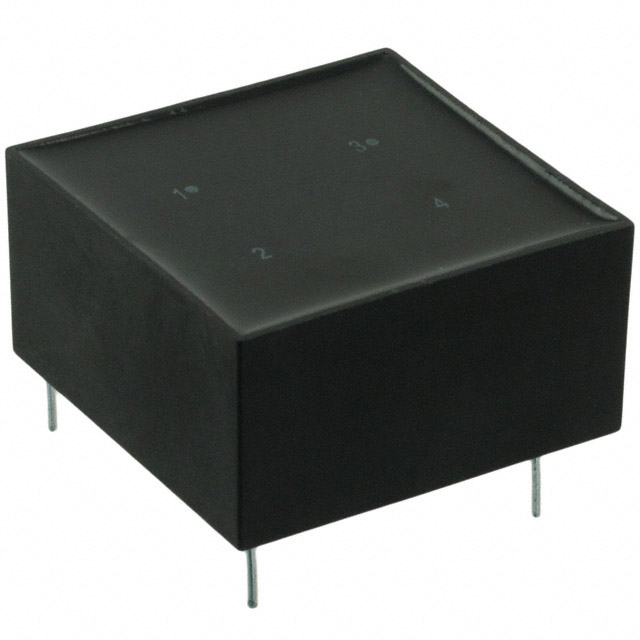

The PE-62897NL is a common mode inductor manufactured by Pulse Electronics, designed for through-hole PCB mounting. It features a dual-line configuration with an inductance of 2 mH measured at 1 kHz. The component supports a maximum current rating of 7.5 A and exhibits a maximum DC resistance of 20 mOhms. Physical dimensions are 38.1 mm in length and width, with a height of 20.32 mm. Lead spacing is 32.51 mm, and lead diameter is 0.047 inches. It operates within a temperature range of -40°C to +125°C.

Common Mode Chokes Feature Summary

Dual-line common mode filtering capability
Through-hole radial termination style
High current handling capacity

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in electronic circuits
Common mode noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the PE-62897NL to confirm RoHS compliance status and exact mechanical tolerances. Ensure that the selected mounting holes on the PCB align with the 32.51 mm lead spacing specification. Confirm thermal management requirements given the 7.5 A current rating and operating temperature limits. Cross-reference manufacturer documentation for any updates regarding material composition or end-of-life notices.

Common Mode Chokes Selection Notes

Select this component when dual-line common mode attenuation is required at low frequencies around 1 kHz. The 2 mH inductance value provides significant impedance to common mode noise while maintaining low series resistance. Consider the physical footprint of 38.1 x 38.1 mm and the 20.32 mm height for enclosure clearance. The through-hole construction offers robust mechanical stability compared to surface mount alternatives.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics common mode choke family, specifically engineered for power line applications. It utilizes a toroidal or similar magnetic core structure to achieve high common mode rejection ratios. The product line emphasizes reliability in industrial and commercial power conversion environments where EMI standards must be met.
