PE-62911NL

$5.31

Description：CMC 10MH 1.8A 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:a69a935c8f28 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

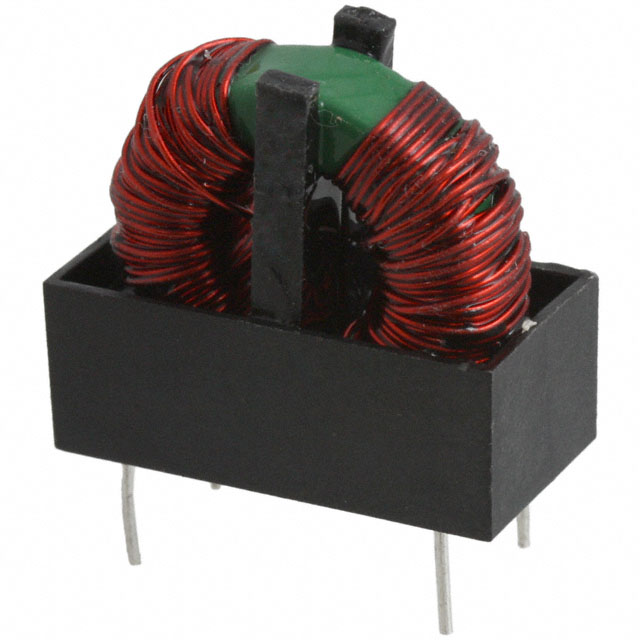

PE-62911NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 10MH 1.8A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PE-62911NL

Description：CMC 10MH 1.8A 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.8A
DC Resistance (DCR) (Max)：240mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.150" L x 0.560" W (29.21mm x 14.22mm)
Height (Max)：1.160" (29.46mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：10 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PE-62911NL

PE-62911NL

Common Mode Chokes Overview

The PE-62911NL is a through-hole common mode choke manufactured by Pulse Electronics. It features an inductance of 10 mH at 1 kHz and supports a maximum DC current of 1.8 A. The component has a maximum DC resistance of 240 mOhms. It operates within a temperature range of -40°C to +125°C. Physical dimensions include a width of 14.22 mm and a height of 29.21 mm.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for differential signal lines
Designed for through-hole PCB mounting applications
Constructed for high current handling capabilities

Common Mode Chokes Applications

EMI filtering in electronic circuits
Signal line protection in communication equipment
Power supply input filtering

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the PE-62911NL to confirm mechanical drawings and electrical tolerances. Ensure compatibility with existing PCB footprint requirements, specifically the through-hole pin spacing and body dimensions. Check for any RoHS compliance documentation if required for your manufacturing process. Confirm lead time availability with authorized distributors as stock levels may vary.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise attenuation on lines carrying up to 1.8 A. The 10 mH inductance value is suitable for standard EMI suppression frequencies. Consider the physical size constraints due to its through-hole construction and height profile. Ensure the operating environment stays within the specified -40°C to +125°C temperature range for reliable performance.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics family of EMI filters and common mode chokes. These components are engineered to suppress electromagnetic interference in sensitive electronic systems. The PE-62911NL utilizes a wound coil design optimized for common mode rejection while maintaining low series resistance for minimal signal loss.
