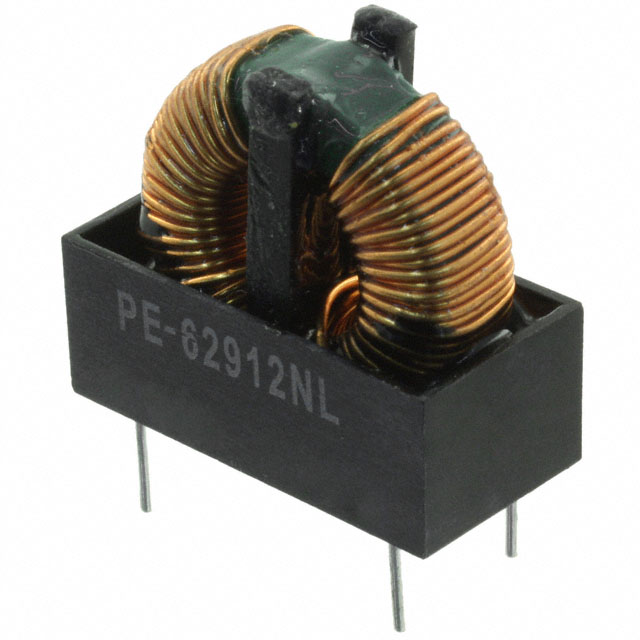

PE-62912NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 3MH 3.5A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-62912NL
- Description：CMC 3MH 3.5A 2LN TH
- Series：-
- Mfr：Pulse Electronics
- Package：Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3.5A
- DC Resistance (DCR) (Max)：60mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.150" L x 0.560" W (29.21mm x 14.22mm)
- Height (Max)：1.160" (29.46mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：3 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-62912NL
Common Mode Chokes Overview
The PE-62912NL is a two-line common mode choke manufactured by Pulse Electronics. It provides an inductance of 3 mH at 1 kHz and supports a maximum current rating of 3.5 A. The component features a low DC resistance of 60 mOhm and utilizes through-hole mounting technology. Designed for robust performance, it operates within a temperature range of -40°C to 125°C. This unshielded filter is suitable for applications requiring effective electromagnetic interference suppression in power circuits.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line configurations
- Supports high current handling up to 3.5 Amperes
- Utilizes through-hole termination for secure PCB integration
Common Mode Chokes Applications
- Power supply input filtering
- Electromagnetic interference suppression in electronic devices
- Signal integrity protection in data lines
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure authenticity. Confirm that the required current rating and inductance values match your circuit design specifications before ordering. Check for RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure the through-hole package dimensions fit your printed circuit board layout constraints.
Common Mode Chokes Selection Notes
Select this component when designing circuits that require effective common mode noise reduction for two-wire systems. Consider the 3.5 A current rating to ensure adequate headroom for peak load conditions. Verify that the 3 mH inductance value aligns with the target frequency range for interference suppression. Ensure the operating temperature range meets the environmental requirements of the final application.
Common Mode Chokes Part Context
This component belongs to the common mode choke category within Pulse Electronics' passive component portfolio. It is designed to mitigate electromagnetic interference in dual-line configurations. The product is widely used in industrial and consumer electronics where signal integrity and noise immunity are critical. It complements other filtering solutions by providing targeted attenuation of common mode signals.
Common Mode Chokes Replacement Considerations
Consult official distributor databases for verified substitute part numbers from Pulse Electronics or equivalent manufacturers. Ensure any replacement matches the 3 mH inductance, 3.5 A current rating, and 60 mOhm DC resistance specifications. Verify compatibility with through-hole mounting and physical footprint constraints before implementation.
