PE-62913NL

Common Mode Chokes Overview

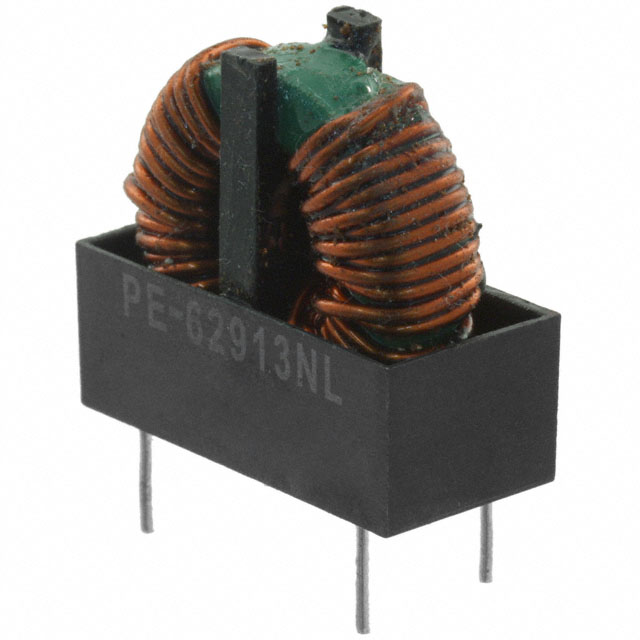

The PE-62913NL is a through-hole common mode choke manufactured by Pulse Electronics. It features a dual-line configuration with an inductance of 1000 µH (1 mH) measured at 1 kHz. The component supports a maximum DC current of 6 A and exhibits a low maximum DC resistance of 20 mΩ. It operates within a temperature range of -40°C to +125°C and has physical dimensions of approximately 29.21 mm in height.

Common Mode Chokes Feature Summary

• Dual-line common mode filtering for EMI suppression
• High current handling capability up to 6 A
• Low DC resistance for efficient power transmission
• Through-hole mounting for robust PCB integration

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Signal integrity protection in data lines

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for precise mechanical drawings and compliance certifications. Confirm that the through-hole package style matches the target PCB footprint. Ensure the 6 A current rating and 20 mΩ DCR meet the circuit requirements. Check for any RoHS or REACH compliance documentation if required by the end product regulations.

Common Mode Chokes Selection Notes

Select this component when high current capacity and effective common mode noise reduction are required in a through-hole design. The low DC resistance minimizes power loss, making it suitable for efficient power stages. Consider the physical size constraints as the height is approximately 29.21 mm. Compare against surface mount alternatives if space is limited.

Common Mode Chokes Part Context

This part belongs to Pulse Electronics' common mode choke lineup, designed for electromagnetic interference suppression. It serves as a passive filter component in electronic circuits to block high-frequency noise while allowing desired signals or power to pass. The dual-line structure indicates its use in differential or balanced line applications.
