PE-62916NL

Common Mode Chokes Overview

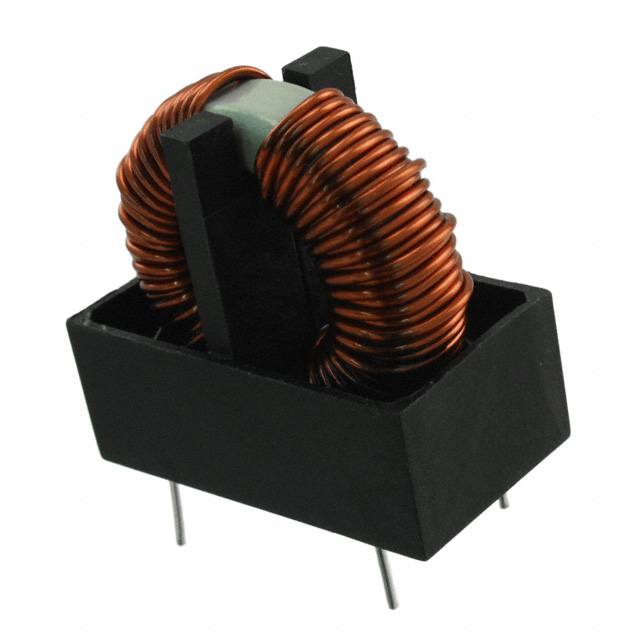

The PE-62916NL is a radial leaded common mode choke manufactured by Pulse Electronics. It features an inductance of 4 mH and supports a maximum DC current of 5.2 A. The component has a maximum DC resistance of 40 mOhms and is designed for through-hole PCB mounting. It operates within a standard industrial temperature range and complies with RoHS standards.

Common Mode Chokes Feature Summary

• Provides effective electromagnetic interference suppression for two-line circuits
• Supports high current handling capability up to 5.2 A
• Utilizes radial through-hole termination for secure board integration

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Signal integrity protection in data lines

Common Mode Chokes Procurement Notes

Verify the specific suffix NL against the manufacturer's latest datasheet to confirm exact electrical tolerances and material composition. Ensure the procurement channel provides valid traceability documentation. Confirm that the component meets current environmental compliance requirements for the target market before finalizing orders.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise rejection at moderate frequencies. The 5.2 A current rating suits applications with significant load demands. Verify that the physical dimensions fit the available PCB real estate and that the through-hole pitch matches the design layout constraints.

Common Mode Chokes Part Context

This part belongs to Pulse Electronics' CMHC series of common mode chokes. These components are engineered for general-purpose EMI filtering in power electronics. The series offers various inductance values and current ratings to accommodate different circuit requirements while maintaining consistent performance characteristics.

Common Mode Chokes Replacement Considerations

Check for direct substitutes with identical inductance, current rating, and form factor. Ensure any replacement maintains the same DC resistance and frequency response characteristics to avoid circuit performance degradation.
