PE-62917NL

Common Mode Chokes Overview

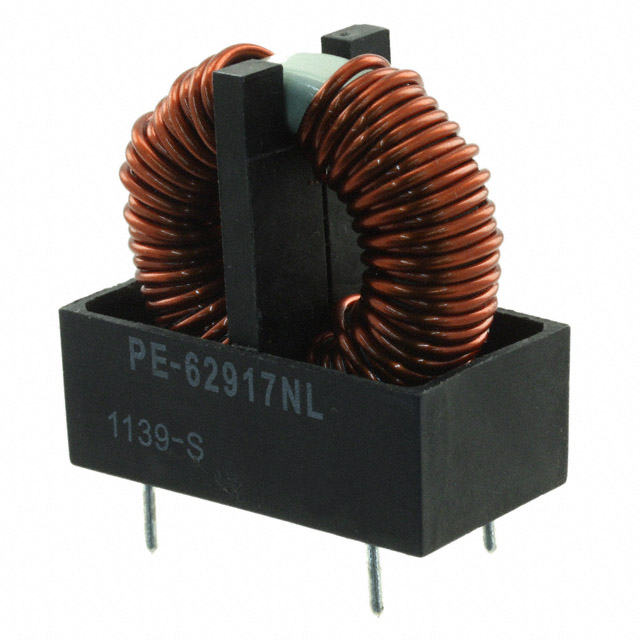

The PE-62917NL is a common mode choke manufactured by Pulse Electronics, designed for through-hole mounting. It features an inductance of 2 mH and supports a maximum DC current of 7.5 A. The component exhibits a maximum DC resistance of 20 mOhms. It operates within a temperature range of -40°C to +130°C. Physical dimensions include a length of approximately 36.5 mm, width of 20.32 mm, and height of 38.1 mm.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for two-line circuits
• Supports high current handling up to 7.5 A with low DC resistance
• Designed for vertical through-hole PCB mounting

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in electronic equipment
• Signal integrity protection in data lines

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for exact electrical tolerances and thermal characteristics before integration. Confirm that the through-hole footprint matches the target PCB layout constraints. Ensure the operating temperature range aligns with the final application environment requirements.

Common Mode Chokes Selection Notes

Select this component when a 2 mH inductance at 1 kHz is required for common mode noise reduction. The 7.5 A current rating suits applications with moderate power demands. Consider the vertical package profile for space-constrained boards requiring robust mechanical stability.

Common Mode Chokes Part Context

This part belongs to the common mode choke category from Pulse Electronics. It serves as a replacement for discontinued Eaton CMT series components, such as the CMT2-9-R, offering similar electrical performance in a comparable form factor for legacy system upgrades.

Common Mode Chokes Replacement Considerations

The PE-62917NL is documented as a substitute for the Eaton CMT2-9-R. Verify pin compatibility and inductance tolerance differences during transition.
