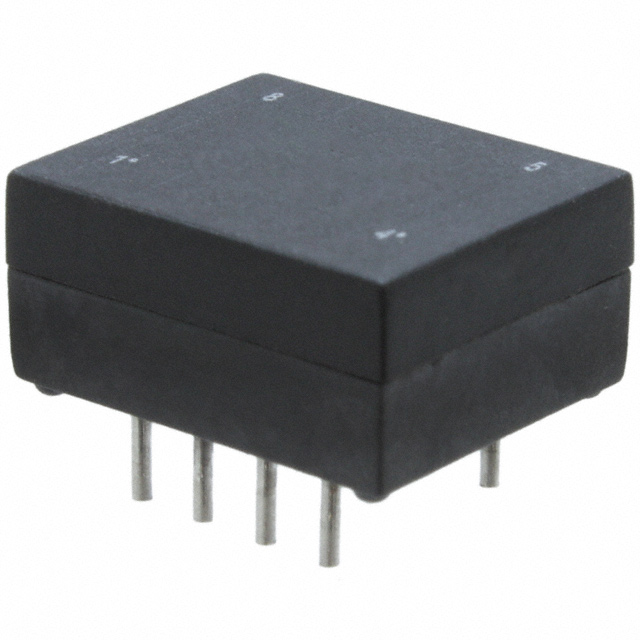

PE-65554NL

$3.63

Description：CMC 4LN TH
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:12293b711443 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE-65554NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 4LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PE-65554NL

Description：CMC 4LN TH
Series：-
Mfr：Pulse Electronics
Package：Tube
Filter Type：Signal Line
Number of Lines：4
Current Rating (Max)：-
DC Resistance (DCR) (Max)：300mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：0°C ~ 70°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.595" L x 0.480" W (15.11mm x 12.19mm)
Height (Max)：0.300" (7.62mm)
Package / Case：Horizontal, 8 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PE-65554NL

PE-65554NL

Common Mode Chokes Overview

The PE-65554NL is a single-channel, through-hole common mode choke manufactured by Pulse Electronics. Designed for high-frequency applications, it features an inductance of 24 uH and a maximum DC resistance of 0.3 Ohms. The component utilizes a radial leaded termination style suitable for PCB mounting. It operates within a temperature range of 0°C to +70°C and is classified as an unshielded signal line filter.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for signal lines
Supports through-hole PCB assembly via radial leads
Engineered for high-frequency operation

Common Mode Chokes Applications

ISDN S-interface circuits
Telecommunications equipment
Signal line filtering

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before integration, as manufacturing specifications may evolve. Confirm that the radial lead configuration matches the target PCB footprint design. Ensure the operating environment remains within the specified 0°C to +70°C thermal limits to maintain performance integrity and reliability standards.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is required for high-frequency common mode noise reduction. The 24 uH inductance value is appropriate for specific ISDN S-interface filtering requirements. Consider the unshielded nature of the device regarding nearby sensitive circuitry placement on the board layout.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics PE-65554 series of common mode chokes. It is categorized under audio and signal transformers, specifically designed for telecommunications interfaces. The product is RoHS compliant and falls under the subcategory of inductors, chokes, and coils within the broader electronic components market.
