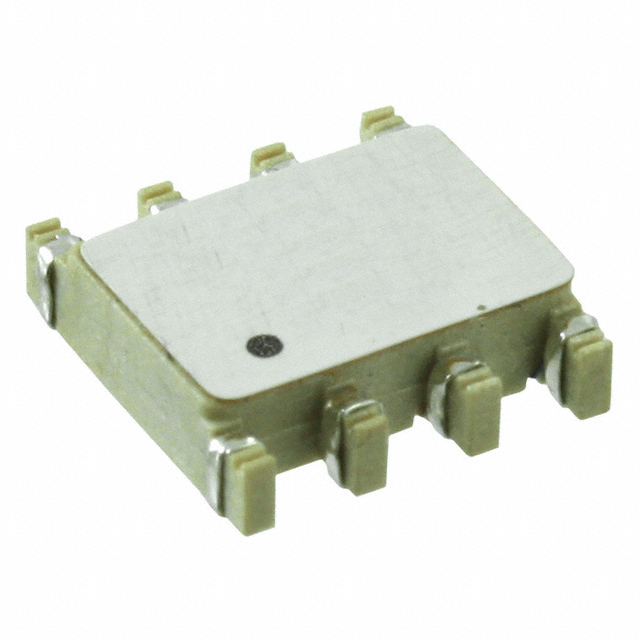

PE-65854NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 4LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-65854NLT
- Description：CMC 4LN SMD
- Series：0.025
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：400mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：0°C ~ 70°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.360" L x 0.340" W (9.14mm x 8.64mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：Vertical, 8 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-65854NLT
Common Mode Chokes Overview
The PE-65854NLT is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 47 uH and a maximum DC resistance of 0.4 Ohms. The component utilizes a vertical package with eight flat leads, measuring 9.14 mm in length and 8.64 mm in width. It operates within a temperature range of 0°C to +70°C and is designed for signal line applications.
Common Mode Chokes Feature Summary
- Surface mount construction for automated assembly
- Vertical eight-flat-lead package design
- Signal line filtering capability
Common Mode Chokes Applications
- ISDN S-Interface circuits
- Telecommunications signal lines
- Common mode noise suppression
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for the PE-65854NLT to confirm exact mechanical tolerances and electrical limits. Ensure compatibility with the target PCB footprint dimensions of 9.14 mm by 8.64 mm. Confirm that the operating temperature range of 0°C to +70°C meets the environmental requirements of the final assembly.
Common Mode Chokes Selection Notes
Select this component when a 47 uH inductance value is required for surface-mount ISDN or telecommunications applications. The low DC resistance of 0.4 Ohms supports efficient signal transmission. The vertical eight-lead configuration provides stability for high-density board layouts requiring common mode filtering.
Common Mode Chokes Part Context
This part belongs to the Pulse Electronics common mode choke family, specifically engineered for telecommunications interfaces. It serves as a passive filter component to mitigate electromagnetic interference on data lines. The device complements other signal transformers and chokes in network interface modules.
Common Mode Chokes Replacement Considerations
Cross-reference with other 47 uH surface-mount common mode chokes from Pulse Electronics. Verify lead count and pitch compatibility before substituting. Ensure equivalent inductance and DC resistance values are maintained for circuit performance.
