PE-65855NL

Common Mode Chokes Overview

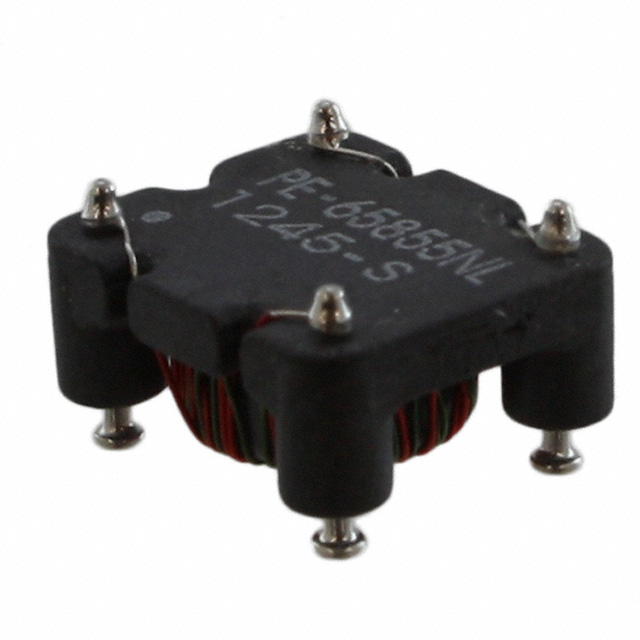

The PE-65855NL is a two-line common mode choke manufactured by Pulse Electronics, designed for surface mount applications. It features a horizontal package with four PCB terminals and measures 10.16mm in length, 8.76mm in width, and up to 6.35mm in height. The component has a maximum DC resistance of 1 ohm per line. It is classified as a signal line filter and is currently active in production. The device complies with RoHS3 standards and carries an EAR99 classification.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual-line signal paths
• Designed for direct surface mount integration onto printed circuit boards
• Constructed with a horizontal footprint to accommodate specific board layouts

Common Mode Chokes Applications

• Signal line filtering in electronic circuits
• Common mode noise reduction in telecommunications equipment
• EMI suppression in data transmission interfaces

Common Mode Chokes Procurement Notes

Verify the exact datasheet specifications directly from Pulse Electronics before finalizing design integration. Confirm that the surface mount package dimensions and terminal configuration align with the target PCB footprint. Ensure compliance requirements such as RoHS3 status meet project standards. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Common Mode Chokes Selection Notes

Select this component when a dual-line surface mount solution is required for signal integrity management. The 1 ohm DC resistance limit should be evaluated against the circuit's current carrying requirements. Consider the physical height constraint of 6.35mm for assembly clearance. Verify that the unshielded construction meets the electromagnetic interference environment of the application.

Common Mode Chokes Part Context

This component belongs to the Pulse Electronics family of common mode chokes intended for signal processing. It serves as a passive filter element to attenuate high-frequency noise on differential or parallel signal lines. The product is distinct from power line filters due to its low impedance characteristics and specific signal line orientation.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for equivalent parts within the same series. Verify pin compatibility and electrical parameters before replacing existing inventory.
