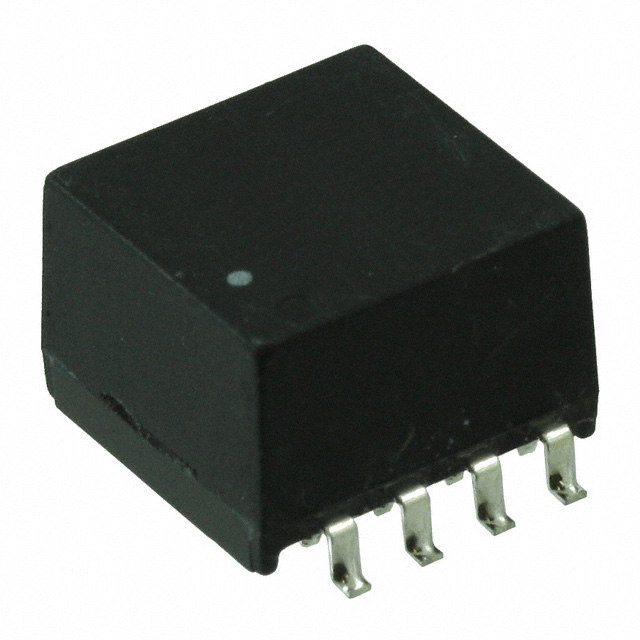

PE-65857NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 4LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-65857NL
- Description：CMC 4LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：220mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：0°C ~ 70°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.475" L x 0.475" W (12.07mm x 12.07mm)
- Height (Max)：0.340" (8.64mm)
- Package / Case：Vertical, 8 Gull Wing
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-65857NL
Common Mode Chokes Overview
The PE-65857NL is a single-channel surface-mount common mode choke manufactured by Pulse Electronics. Designed for telecommunications applications, this unshielded component features an inductance of 22.5 uH with a tolerance of 0.25%. It exhibits a maximum DC resistance of 200 mOhms and operates within a temperature range of 0 C to +70 C. The physical dimensions are 15.24 mm in length, 12.07 mm in width, and 8.54 mm in height. It is supplied in tube packaging.
Common Mode Chokes Feature Summary
- Provides common mode noise filtering for telecommunication signal lines
- Supports surface mount technology for automated PCB assembly
- Features unshielded construction for standard electromagnetic interference suppression
Common Mode Chokes Applications
- Telecommunications equipment signal line protection
- Common mode noise suppression in data transmission circuits
- PCB mounting for SMD assembly processes
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for the PE-65857NL to confirm current RoHS compliance status and REACH registration details. Ensure that the required inductance tolerance and DC resistance specifications align with the design requirements before finalizing procurement orders. Confirm package type availability matches the intended manufacturing process.
Common Mode Chokes Selection Notes
Select the PE-65857NL when a single-channel surface-mount solution is required for telecommunication applications. Consider its 22.5 uH inductance and low DC resistance characteristics for signal integrity. Verify that the unshielded design meets the system's electromagnetic compatibility requirements and that the operating temperature range fits the environmental conditions.
Common Mode Chokes Part Context
This component belongs to the PE-65857 series of common mode chokes from Pulse Electronics. It is categorized under audio and signal transformers or inductors, specifically designed for telecom interfaces. The part is distinct from other series members by its specific inductance value and surface-mount footprint dimensions.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers for the PE-65857NL were not identified in the provided documentation. Cross-referencing with manufacturer catalogs or authorized distributors is recommended to identify compatible alternatives with matching electrical and mechanical specifications.
