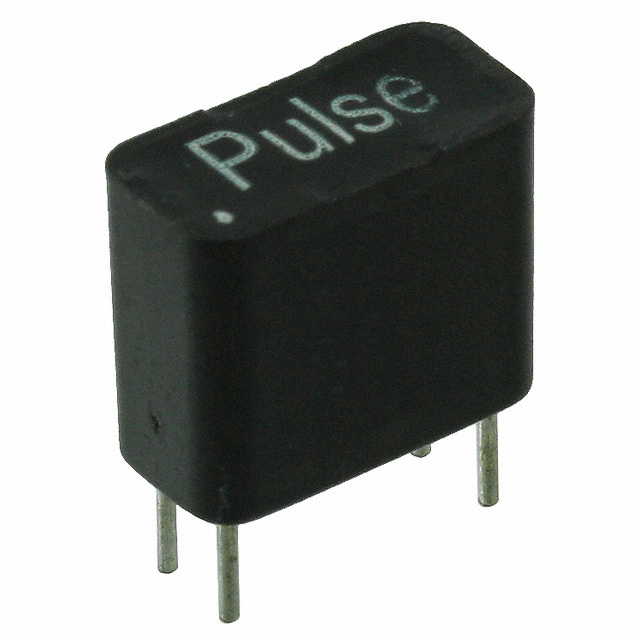

PE-67531NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-67531NL
- Description：CMC 2LN TH
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：600mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.400" L x 0.200" W (10.16mm x 5.08mm)
- Height (Max)：0.350" (8.89mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-67531NL
Common Mode Chokes Overview
The PE-67531NL is a through-hole common mode choke manufactured by Pulse Electronics. It features an inductance of 140uH and a DC resistance of 0.6 Ohms. Designed for audio and signal transformer applications, this component operates within a frequency range of 50 kHz to 3 MHz. The device utilizes a dual-channel configuration housed in an unshielded module package suitable for PCB mounting.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for signal lines
- Supports through-hole termination for robust PCB integration
- Dual-channel design for balanced signal processing
Common Mode Chokes Applications
- Audio signal conditioning circuits
- Telecommunications interface protection
- Signal integrity enhancement in data transmission lines
Common Mode Chokes Procurement Notes
Verify the specific datasheet revision to confirm mechanical dimensions and electrical tolerances before finalizing the design. Ensure that the through-hole footprint matches the target PCB layout constraints. Confirm compliance with relevant environmental standards required for the end application.
Common Mode Chokes Selection Notes
Select this component when a low-inductance common mode choke is required for high-frequency signal filtering. The 140uH value suits applications where minimal impedance to differential signals is necessary while attenuating common mode noise. Consider the 0.6 Ohm DC resistance for power loss calculations in the signal path.
Common Mode Chokes Part Context
This part belongs to Pulse Electronics' portfolio of audio and signal transformers. It is categorized under common mode chokes and filters, specifically designed for through-hole assembly. The product line focuses on providing reliable signal isolation and noise reduction for sensitive electronic interfaces.
Common Mode Chokes Replacement Considerations
Check for direct substitutes with identical 140uH inductance and 0.6 Ohm resistance. Verify pin compatibility and physical dimensions to ensure interchangeability without modifying the existing PCB footprint or circuit design.
Common Mode Chokes FAQ
What is the primary function of the PE-67531NL?
It functions as a common mode choke to suppress electromagnetic interference in signal lines.
Is the PE-67531NL shielded?
No, the component is specified as unshielded.
