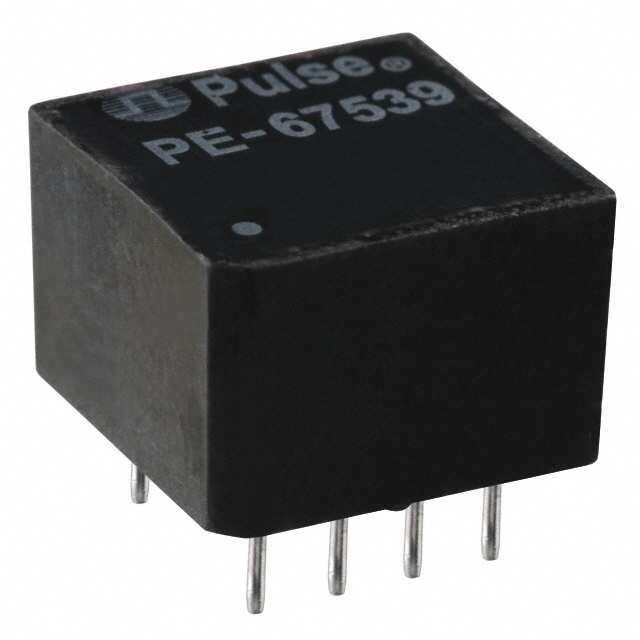

PE-67539 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 4LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-67539
- Description：CMC 4LN TH
- Series：-
- Mfr：Pulse Electronics
- Package：Bulk
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：600mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height (Max)：0.375" (9.53mm)
- Package / Case：Vertical, 8 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-67539
Common Mode Chokes Overview
The PE-67539 is a quad common mode choke manufactured by Pulse Electronics, designed for electromagnetic interference suppression. It features four independent lines and utilizes a through-hole mounting configuration. The component operates within a self-resonant frequency range of 100 kHz to 1 GHz. Physical dimensions include a length of 12.70 mm. It is classified as a leaded component suitable for power applications requiring robust EMI filtering capabilities.
Common Mode Chokes Feature Summary
- Provides four independent lines for comprehensive signal integrity protection
- Engineered specifically for effective electromagnetic interference suppression
- Constructed with a through-hole termination style for secure PCB attachment
Common Mode Chokes Applications
- Electromagnetic interference suppression in electronic circuits
- Power line filtering applications
- Signal integrity enhancement in multi-line systems
Common Mode Chokes Procurement Notes
Verify the specific suffix (e.g., NL) against official datasheets to confirm RoHS compliance status and exact physical dimensions. Confirm that the through-hole package matches your board layout requirements. Ensure the manufacturer designation aligns with Pulse Electronics specifications before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when four-channel common mode noise reduction is required. Verify that the operating frequency range meets system needs. Ensure the through-hole form factor is compatible with the assembly process. Check temperature ratings against environmental conditions.
Common Mode Chokes Part Context
This part belongs to the Pulse Electronics common mode filter and choke product line. It serves as a specialized passive component for noise mitigation. The series focuses on providing reliable interference suppression for sensitive electronic equipment through standardized through-hole packaging solutions.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases or manufacturer cross-reference guides for verified alternatives.
