PE-67540T

Common Mode Chokes Overview

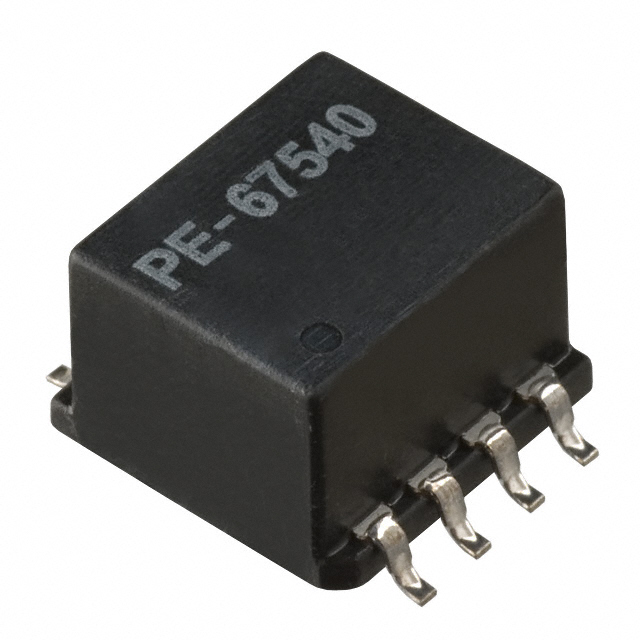

The PE-67540T is a surface-mount common mode choke manufactured by Pulse Electronics. It features four lines of filtering capability with a maximum DC resistance (DCR) of 600 milliohms. The component measures 12.10mm in length and 15.30mm in width, designed for compact circuit board integration. This filter provides robust noise reduction for sensitive electronic applications.

Common Mode Chokes Feature Summary

• Four-line common mode filtering architecture
• Surface mount package design
• Low DC resistance for minimal signal loss

Common Mode Chokes Applications

• Noise reduction for sensitive electronics
• Signal integrity protection in data lines
• EMI suppression in compact devices

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before procurement to ensure compatibility with current manufacturing standards. Confirm that the four-line configuration matches the target circuit requirements. Check for any lifecycle status updates as some sources indicate this part may be obsolete or restricted in certain regions.

Common Mode Chokes Selection Notes

Select this component when four-channel common mode filtering is required in a surface-mount form factor. Ensure the PCB footprint accommodates the 12.10mm x 15.30mm dimensions. Verify that the 600mOhm DCR meets the power budget and signal integrity constraints of the application.

Common Mode Chokes Part Context

This component belongs to the common mode choke category within Pulse Electronics' passive components portfolio. It serves as an electromagnetic interference filter for multi-line signal paths. The device is distinct from single-line chokes due to its quad-channel architecture.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct replacements if this part is obsolete.
