PE-68624NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-68624NL
- Description：CMC 2LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：400mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.260" L x 0.360" W (6.60mm x 9.14mm)
- Height (Max)：0.098" (2.49mm)
- Package / Case：Vertical, 6 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-68624NL
Common Mode Chokes Overview

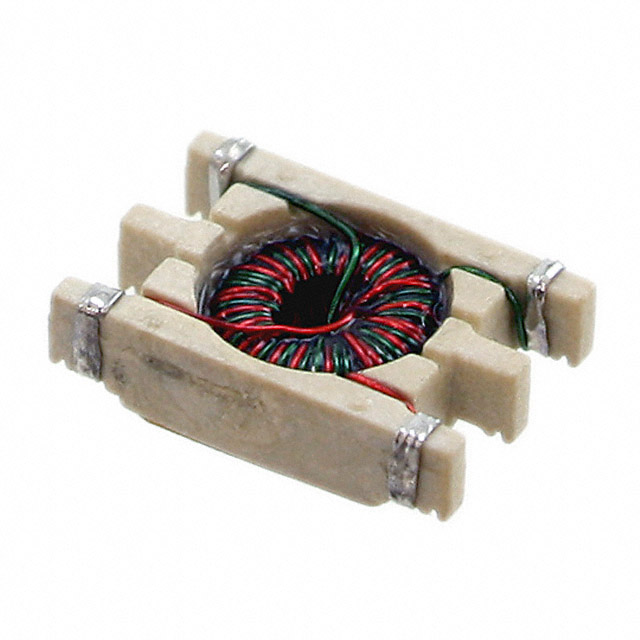

The PE-68624NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features a single-channel design with an inductance of 47 uH and a maximum DC resistance of 400 mOhms. The component operates within a temperature range of 0°C to +70°C. Its physical dimensions are 8.64 mm in length, 6.6 mm in width, and 2.49 mm in height. The device utilizes SMD/SMT termination types for PCB mounting.
Common Mode Chokes Feature Summary
- Surface mount construction for automated assembly
- Single-channel common mode filtering capability
- Compact vertical footprint design
Common Mode Chokes Applications
- Signal line noise suppression
- EMI filtering in electronic circuits
- Common mode interference reduction
Common Mode Chokes Procurement Notes
Verify the specific ordering suffix and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the package type matches the intended PCB layout requirements. Ensure the operating temperature range aligns with the final application environment specifications to guarantee reliable performance.
Common Mode Chokes Selection Notes
Select this component when a low-profile, single-channel common mode choke is required for surface-mount applications. Consider the 47 uH inductance value and 400 mOhms DC resistance against circuit impedance needs. Verify that the 0°C to +70°C operating range meets environmental constraints. Compare physical dimensions against available board space.
Common Mode Chokes Part Context
This part belongs to the PE-68624 series of surface-mount common mode chokes from Pulse Electronics. It is categorized under Inductors, Chokes & Coils. The product is designed for general-purpose EMI suppression in compact electronic devices requiring SMD integration.
Common Mode Chokes Replacement Considerations
The PE-68624T is a related variant within the same series but differs in packaging configuration. Verify compatibility if substituting between tube and reel/cut tape formats.
