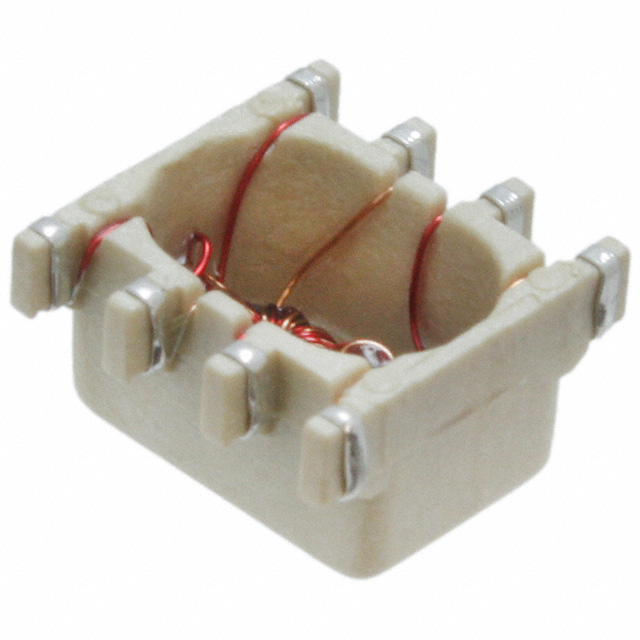

PE-68627NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 4LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-68627NL
- Description：CMC 4LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Signal Line
- Number of Lines：4
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：250mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.355" L x 0.345" W (9.02mm x 8.76mm)
- Height (Max)：0.207" (5.26mm)
- Package / Case：Vertical, 8 Flat Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-68627NL
Common Mode Chokes Overview
The PE-68627NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features four channels with an inductance of 24 µH and a maximum DC resistance of 0.25 Ω. The component operates within a temperature range of -40°C to +125°C. Its physical dimensions are 13.97 mm in length, 9.65 mm in width, and 14.73 mm in height.
Common Mode Chokes Feature Summary
- Four-channel configuration for multi-line noise suppression
- Surface-mount design for automated PCB assembly
- High thermal stability across extended industrial temperature ranges
Common Mode Chokes Applications
- Common mode noise filtering in high-speed data interfaces
- EMI suppression in power supply input stages
- Signal integrity protection in communication equipment
Common Mode Chokes Procurement Notes
Verify the specific datasheet version for the PE-68627NL to confirm pinout compatibility and mechanical tolerances before integration. Ensure that the selected supplier provides traceable documentation matching the manufacturer's specifications. Cross-reference the part number with official distributor catalogs to avoid counterfeit components or incorrect suffix variations.
Common Mode Chokes Selection Notes
Select this component when multi-line common mode rejection is required in space-constrained designs. The low DC resistance supports efficient power transmission while maintaining effective noise attenuation. Evaluate the thermal performance requirements against the specified operating temperature range to ensure reliability under load conditions.
Common Mode Chokes Part Context
This component belongs to the PE-68624 series of surface-mount common mode chokes from Pulse Electronics. The series offers various inductance values tailored for different frequency suppression needs. The PE-68627NL specifically addresses applications requiring quad-channel filtering capabilities in a compact footprint.
Common Mode Chokes Replacement Considerations
Consult the manufacturer's official substitution guide for verified alternatives. Direct replacements must match the 24 µH inductance, 0.25 Ω DCR, and quad-channel configuration. Verify package dimensions and terminal compatibility to ensure seamless integration without PCB redesign.
