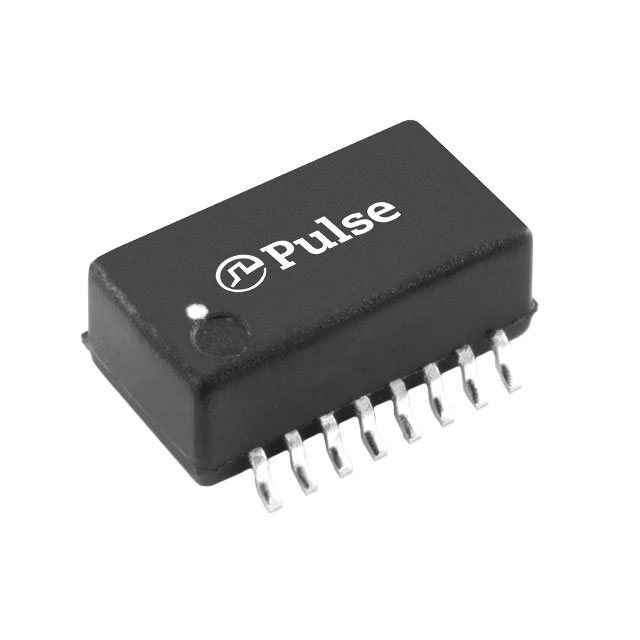

PE-69011NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 8LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PE-69011NL
- Description：CMC 8LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Signal Line
- Number of Lines：8
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：350mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.500" L x 0.275" W (12.70mm x 6.99mm)
- Height (Max)：0.200" (5.08mm)
- Package / Case：Vertical, 16 Gull Wing
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PE-69011NL
Common Mode Chokes Overview
The PE-69011NL is an 8-line common mode choke manufactured by Pulse Electronics Corporation, designed for surface-mount device (SMD) applications. It features a nominal inductance of 36 µH and a maximum DC resistance (DCR) of 0.35 Ohms. The component is housed in a compact package with a height of 5.08 mm. This filter is engineered to suppress electromagnetic interference across multiple signal lines, providing effective noise reduction in high-density circuit designs.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for eight independent signal lines
- Designed for surface-mount technology to facilitate automated assembly
- Low DC resistance minimizes power loss in signal paths
Common Mode Chokes Applications
- High-speed data interface protection
- Telecommunications equipment filtering
- Computer peripheral noise suppression
Common Mode Chokes Procurement Notes
Verify the specific package dimensions and pin configuration against the official datasheet before integration. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process. Ensure the selected variant matches the required inductance tolerance and current handling capabilities for the target application environment.
Common Mode Chokes Selection Notes
Select this component when multi-line common mode noise attenuation is required in space-constrained layouts. Evaluate the 36 µH inductance value against the operating frequency range of the signals being protected. Consider the low DCR specification for applications where signal integrity and minimal voltage drop are critical performance factors.
Common Mode Chokes Part Context
This part belongs to the common mode chokes and filters category within Pulse Electronics' portfolio. It serves as a passive component for EMI mitigation in electronic systems. The product line focuses on providing reliable signal conditioning solutions for modern digital and analog circuits requiring robust interference protection.
Common Mode Chokes Replacement Considerations
Consult official substitution lists or equivalent component databases for verified alternatives. Cross-reference key parameters such as inductance, DCR, and physical footprint to ensure compatibility. Do not assume interchangeability without validating electrical characteristics and mechanical fit against the original design specifications.
