PE-96161NL

Description：CMC 500MA (TYP) 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:5a51718b68ab Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

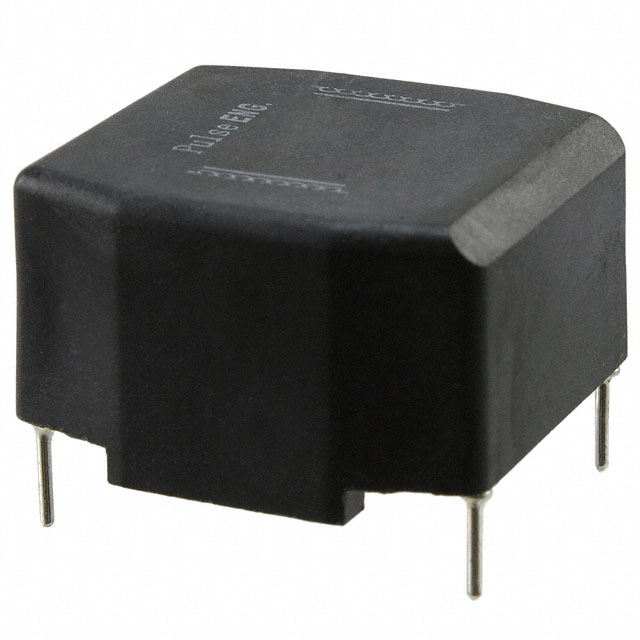

PE-96161NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 500MA (TYP) 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PE-96161NL

Description：CMC 500MA (TYP) 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：500mA (Typ)
DC Resistance (DCR) (Max)：1.4Ohm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.102" L x 1.070" W (28.00mm x 27.18mm)
Height (Max)：0.660" (16.76mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PE-96161NL

PE-96161NL

Common Mode Chokes Overview

The PE-96161NL is a dual-line common mode choke manufactured by Pulse Electronics Corporation. It features through-hole mounting and is designed for EMI filtering applications. The component has an inductance of 33 mH per line, a typical current rating of 500 mA, and a DC resistance (DCR) of 1.4 Ohms.

Common Mode Chokes Feature Summary

Dual-line configuration for common mode noise suppression
Through-hole construction for PCB integration
Designed for EMI filtering in switching supplies

Common Mode Chokes Applications

EMI filtering in power conversion circuits
Signal conditioning in electronic systems
Noise suppression in RF circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when sourcing, as historical documents may vary. Confirm that the 1.4 Ohm DCR and 33 mH inductance values match your design requirements. Ensure the through-hole package dimensions are compatible with your PCB layout before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component for applications requiring moderate current handling up to 500 mA with significant common mode impedance. The 1.4 Ohm DCR indicates low insertion loss for signal lines. Consider thermal management if operating near the maximum current rating continuously.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics Inductor and Choke family, specifically categorized under Common Mode Chokes. It is intended for use in environments where electromagnetic interference needs to be mitigated in dual-line configurations.
