PE-96179NL

Common Mode Chokes Overview

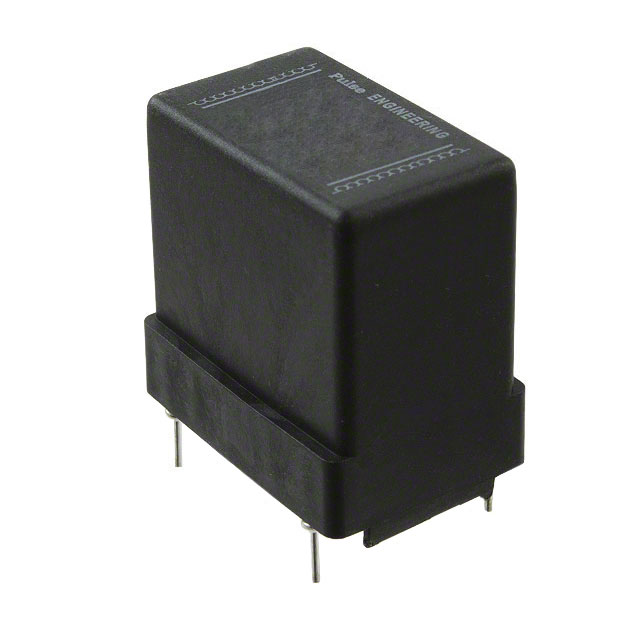

The PE-96179NL is a dual-line common mode choke manufactured by Pulse Electronics. It features an inductance of 1200 µH and a typical DC resistance of 40 mΩ. The component supports a current rating of 3.15 A and operates within a frequency range up to a self-resonant frequency of 500 kHz. Designed for through-hole mounting, it functions effectively between -40°C and +130°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual-line circuits
• Supports high-temperature operation up to 130°C
• Utilizes through-hole technology for PCB integration

Common Mode Chokes Applications

• EMI filtering in power supply lines
• Noise suppression in data communication interfaces
• Common mode interference reduction in electronic assemblies

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the PE-96179NL to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing PCB footprint requirements before procurement. Cross-reference manufacturer documentation for any recent design changes or compliance updates.

Common Mode Chokes Selection Notes

Select this component when dual-line common mode filtering is required at 1200 µH. Consider the 3.15 A current rating and 40 mΩ DCR for thermal management. Verify that the through-hole package fits the assembly constraints and that the operating temperature range meets environmental specifications.

Common Mode Chokes Part Context

This part belongs to Pulse Electronics' common mode filter and choke product line. It is categorized under EMI inductors designed for board mount applications. The series focuses on providing reliable noise attenuation for sensitive electronic circuits in various industrial and commercial environments.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for equivalent dual-line common mode chokes with matching 1200 µH inductance and 3.15 A current ratings. Verify pinout compatibility and physical dimensions before replacing.
