PE-96188NL

Common Mode Chokes Overview

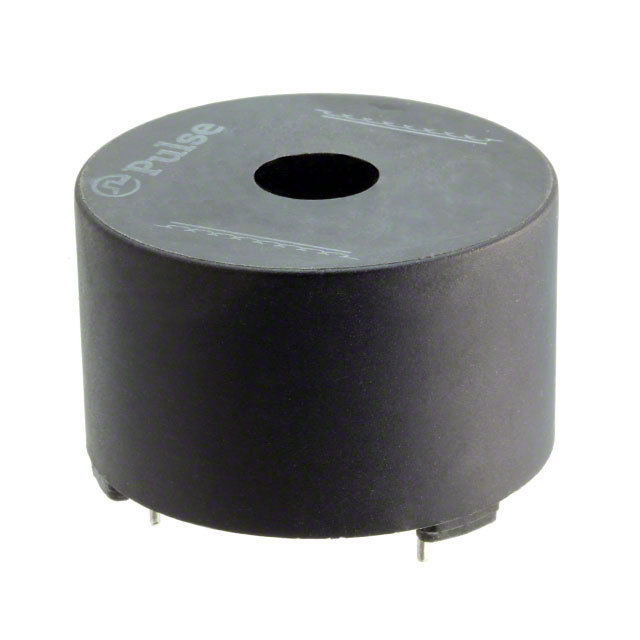

The PE-96188NL is a common mode filter choke manufactured by Pulse Electronics. It features an inductance of 1.8 mH with a tolerance of 30%. The component supports a maximum DC current of 10 A and has a maximum DC resistance of 20 mohms. Its self-resonant frequency is specified at 500 kHz. The unit operates within a temperature range of -40°C to +130°C. Physical dimensions include a length of 26.16 mm and a diameter of 43.18 mm. It utilizes radial termination for through-hole mounting.

Common Mode Chokes Feature Summary

• Provides common mode EMI suppression for two-line circuits
• Utilizes radial leaded construction for through-hole PCB integration
• Engineered for high current handling capabilities up to 10 A

Common Mode Chokes Applications

• Common mode noise filtering in power supply inputs
• EMI suppression in AC/DC converter stages
• Signal integrity protection in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Pulse Electronics or authorized distributors before procurement. Confirm that the radial lead spacing and physical dimensions align with the target PCB footprint design. Ensure the operating environment remains within the specified -40°C to +130°C thermal limits to maintain performance reliability. Cross-reference the 1.8 mH inductance value against circuit requirements to ensure adequate filtering characteristics.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation at frequencies around 500 kHz. The 10 A current rating makes it suitable for higher power applications compared to lower-rated chokes. Consider the radial package style if through-hole assembly is preferred over surface mount alternatives. Evaluate the 20 mohms DCR to ensure voltage drop and power loss meet system efficiency targets under full load conditions.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics common mode choke family, specifically designed for EMI filtering. It falls under the broader category of inductors, chokes, and coils. The product line focuses on providing reliable noise suppression solutions for electronic equipment. As a through-hole component, it offers mechanical stability for applications subject to vibration or stress.

Common Mode Chokes Replacement Considerations

Consult official Pulse Electronics documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
