PE-W42F013

Overview

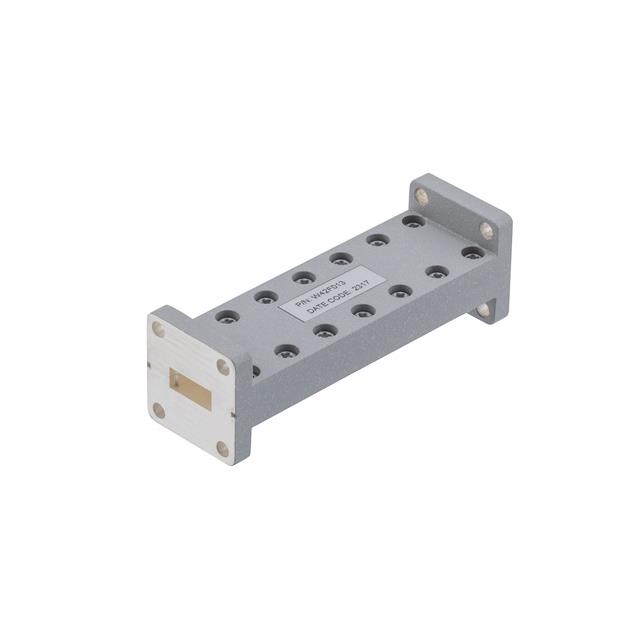

The PE-W42F013 is a low-pass radio frequency filter manufactured by Pasternack. It features a center frequency of 20.7GHz and a bandwidth of 1GHz. The component is designed as a module with an insertion loss specification of 0.5dB.

Feature Summary

• Provides low-pass filtering functionality for radio frequency signals
• Engineered with a specific center frequency of 20.7GHz
• Defined operational bandwidth of 1GHz
• Constructed in a compact module format

Applications

• Radio frequency signal processing systems
• Wireless communication infrastructure
• Test and measurement equipment requiring frequency selection

Procurement Notes

Verify the exact electrical specifications against the manufacturer's current datasheet before integration. Confirm mechanical dimensions and mounting requirements match the design constraints. Ensure the operating environment is compatible with the component's rated performance parameters.

Selection Notes

Select this component when a low-pass filter with a 20.7GHz center frequency and 1GHz bandwidth is required. Consider the 0.5dB insertion loss specification for system link budget calculations. Evaluate the module form factor for space-constrained applications within RF designs.

Part Context

This part belongs to the Pasternack RF filters product line. It is categorized under radio frequency components designed for signal conditioning. The manufacturer specializes in providing specialized interconnect and filtering solutions for high-frequency applications.
