PE-W62F001

Overview

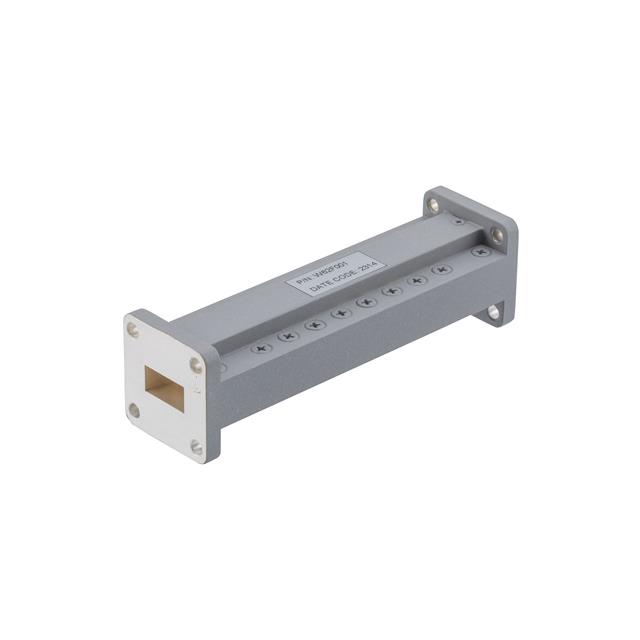

The PE-W62F001 is a bandpass waveguide filter manufactured by Pasternack, designed for signal conditioning applications. It features a WR-62 interface and operates within a frequency range of 13.75 GHz to 14.5 GHz. The device provides a passband bandwidth of 750 MHz with a center frequency of 14.125 GHz. It incorporates UG cover flanges for secure connection and exhibits an insertion loss of 0.3 dB. This component utilizes a waveguide design to ensure effective RF filtering performance in microwave systems.

Feature Summary

• Bandpass waveguide filter design for RF signal conditioning
• WR-62 interface compatibility with UG cover flanges
• Operational frequency range from 13.75 GHz to 14.5 GHz

Applications

• Microwave communication systems requiring bandpass filtering
• RF instrumentation operating within the WR-62 frequency band
• Signal conditioning in high-frequency electronic circuits

Procurement Notes

Verify the specific WR-62 interface requirements and flange type compatibility before procurement. Confirm that the operational frequency range of 13.75 GHz to 14.5 GHz aligns with system specifications. Check current availability status as distribution may vary by region. Ensure proper handling procedures are followed due to the precision nature of waveguide components.

Selection Notes

Select this component when a bandpass filter with a 750 MHz bandwidth centered at 14.125 GHz is required. The WR-62 interface dictates physical compatibility with existing waveguide infrastructure. Consider the 0.3 dB insertion loss specification for system link budget calculations. Verify that the waveguide design meets environmental and mechanical constraints of the intended application environment.

Part Context

This part belongs to the Pasternack waveguide filters series, specifically engineered for microwave signal processing. It serves as a specialized component for filtering unwanted frequencies while passing the desired band. The product represents a new introduction from the manufacturer, indicating recent availability in the market for RF engineering projects requiring precise spectral control.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement consideration.
