PE-W62F002

Overview

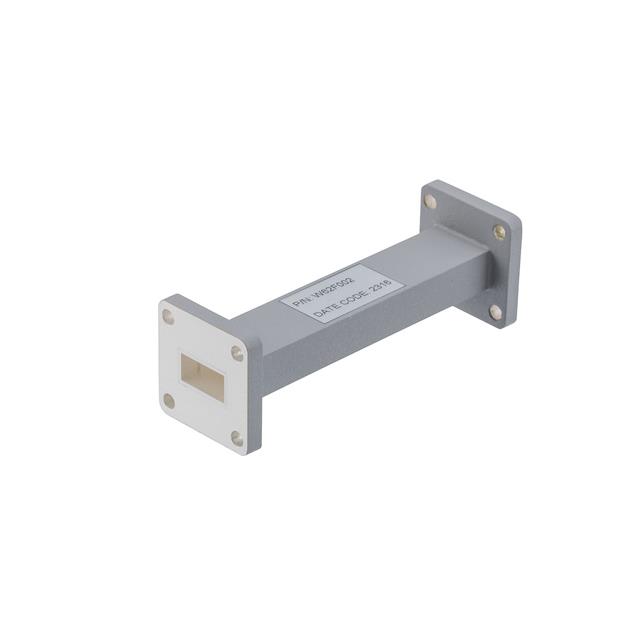

The PE-W62F002 is a highpass waveguide filter manufactured by Pasternack, designed for signal conditioning applications within the microwave spectrum. It features a WR-62 interface and operates from 13 GHz to 18 GHz. The device utilizes a waveguide design with UG covers and UG grooved flanges. Key electrical specifications include a center frequency of 15.5 GHz and a passband bandwidth of 5000 MHz. The insertion loss in the passband is specified as 0.3 dB. This component is part of the Waveguide Filters series and is packaged in bulk.

Feature Summary

• Highpass filtering capability with a defined 13 GHz to 18 GHz operating range
• Waveguide construction utilizing WR-62 interface standards
• Low insertion loss performance of 0.3 dB within the passband

Applications

• Microwave signal conditioning systems
• Radio frequency interference suppression
• Waveguide communication links requiring highpass characteristics

Procurement Notes

Verify the specific datasheet revision and mechanical tolerances against your system requirements before procurement. Confirm that the WR-62 interface dimensions align with existing waveguide infrastructure. Ensure proper handling procedures are followed due to the precision nature of waveguide components. Check for any specific environmental ratings if the deployment involves extreme temperatures or vibration.

Selection Notes

Select this component when a highpass response is required between 13 GHz and 18 GHz. The WR-62 interface dictates compatibility with standard rectangular waveguide systems in this frequency range. Consider the 0.3 dB insertion loss impact on overall system gain. Evaluate the physical size and weight constraints associated with waveguide filters compared to coaxial alternatives.

Part Context

This model belongs to Pasternack's Waveguide Filters series, focusing on passive signal conditioning components. It complements other waveguide products like the PE-W62F001 bandpass filter, offering distinct spectral filtering capabilities. The product line emphasizes standardized interfaces and reliable performance in RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
