PE-W62TR1003

Overview

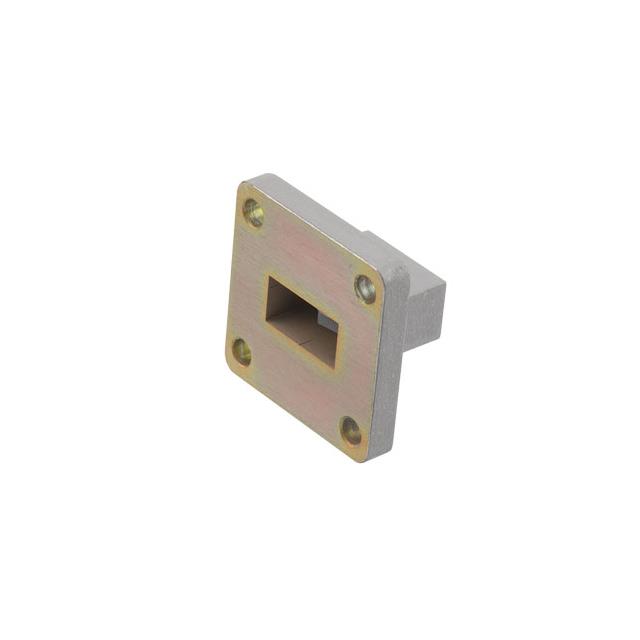

The PE-W62TR1003 is a 1-watt WR-62 waveguide load manufactured by Pasternack. It operates within the frequency range of 14.5 GHz to 17.8 GHz. The component features an aluminum body with a UG square cover flange for secure mounting and connection. This RF terminator is designed for high-power applications, providing a stable termination for waveguide systems in the specified band.

Feature Summary

• Constructs a durable termination using an aluminum body with a UG square cover flange interface.
• Provides reliable signal absorption across the 14.5 GHz to 17.8 GHz operational frequency spectrum.
• Rated for 1-watt power handling capacity suitable for standard waveguide testing environments.

Applications

• Waveguide system testing and measurement setups
• Radio frequency instrumentation calibration
• Telecommunications equipment maintenance

Procurement Notes

Verify the specific flange type and connector compatibility before procurement. Confirm that the operating frequency range aligns with your system requirements. Check for RoHS compliance status if required by your project specifications. Ensure the physical dimensions match your existing waveguide infrastructure.

Selection Notes

Select this component when a fixed 1-watt termination is needed for the WR-62 waveguide size. It is appropriate for applications requiring operation between 14.5 GHz and 17.8 GHz. Consider the aluminum construction for thermal management needs. Evaluate the UG square cover flange against your available mounting hardware.

Part Context

This part belongs to Pasternack's RF terminators category, specifically designed for waveguide applications. It serves as a passive component to absorb reflected signals in microwave circuits. The product supports general-purpose test and instrumentation tasks where precise impedance matching and power dissipation are necessary.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing WR-62 waveguide components before considering alternatives.

FAQ

What is the maximum power rating of the PE-W62TR1003?

The PE-W62TR1003 has a maximum power rating of 1 watt.

Which waveguide standard does this load support?

This load supports the WR-62 waveguide standard.

What material is used for the body of this terminator?

The body of the PE-W62TR1003 is constructed from aluminum.
