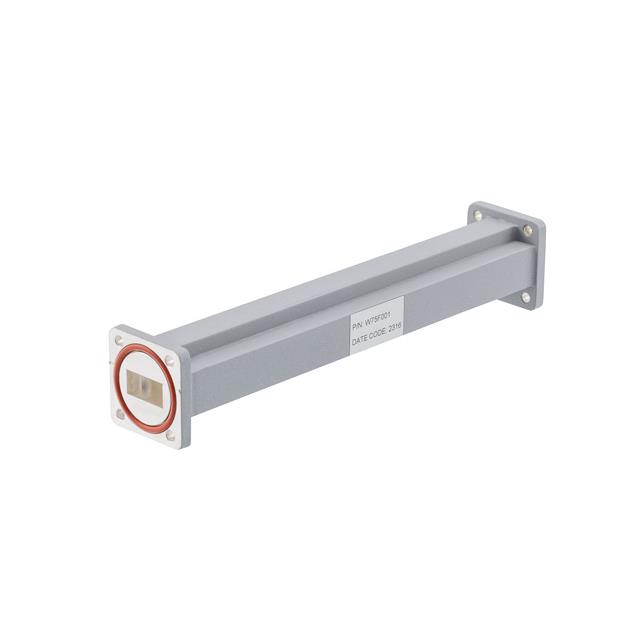

PE-W75F001

Overview

The Pasternack PE-W75F001 is a bandpass waveguide filter designed for signal conditioning applications. It features a WR-75 interface and operates within the frequency range of 13.75 GHz to 14.5 GHz. The component has a center frequency of 14.125 GHz with a bandwidth of 750 MHz. It exhibits an insertion loss of 0.5 dB, ensuring efficient signal transmission within its specified operational parameters.

Feature Summary

• Provides selective frequency filtering through a bandpass waveguide design
• Utilizes a WR-75 waveguide interface for standardized integration
• Engineered for precise signal conditioning in microwave systems

Applications

• Microwave communication systems requiring specific frequency band isolation
• Radar systems utilizing the 13.75 GHz to 14.5 GHz spectrum
• Satellite ground station equipment for signal purification

Procurement Notes

Verify the WR-75 interface compatibility with existing waveguide infrastructure before procurement. Confirm that the operating frequency range of 13.75 GHz to 14.5 GHz aligns with system requirements. Ensure handling procedures account for the precision nature of waveguide components to maintain performance integrity.

Selection Notes

Select this model when a fixed bandpass response is required for the C-band or similar microwave frequencies. The WR-75 interface dictates mechanical compatibility, so verify mating flange standards. Consider the 0.5 dB insertion loss specification for link budget calculations where low attenuation is critical for signal fidelity.

Part Context

This component belongs to the Pasternack Waveguide Filters series, specifically tailored for signal conditioning tasks. It represents a specialized passive RF component distinct from cable assemblies or active modules, focusing on frequency selection within waveguide-based architectures.

Replacement Considerations

Cross-reference with other Pasternack models featuring WR-75 interfaces if availability is constrained. Verify that substitute parts maintain the 13.75 GHz to 14.5 GHz passband and comparable insertion loss characteristics to ensure system continuity.
