PE-W75F002

Overview

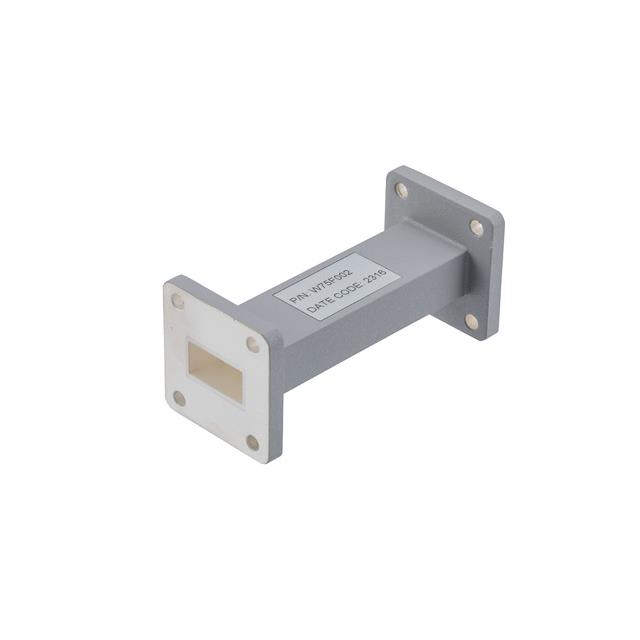

The PE-W75F002 is a highpass waveguide filter manufactured by Pasternack, designed for RF signal conditioning applications. It utilizes the WR-75 interface standard and operates within a frequency range of 13.5 GHz to 15 GHz. The component features a maximum insertion loss of 0.2 dB and has a center frequency of 14.25 GHz with a bandwidth of 1.5 GHz. This unit is constructed as a module suitable for integration into radio frequency systems requiring precise spectral filtering.

Feature Summary

• Provides highpass filtering functionality within the specified microwave frequency band
• Utilizes WR-75 waveguide interface for standardized RF integration
• Maintains low signal attenuation with a maximum insertion loss of 0.2 dB

Applications

• RF system integration requiring spectral filtering
• Microwave communication equipment signal conditioning
• Radio frequency modules operating in the 13.5–15 GHz range

Procurement Notes

Verify the specific WR-75 interface compatibility and frequency specifications against your system requirements before procurement. Confirm that the 0.2 dB insertion loss meets your signal integrity standards. Ensure the physical dimensions and mounting style align with your enclosure design. Check for any RoHS compliance documentation if required by your manufacturing regulations. Validate the center frequency of 14.25 GHz matches your operational needs.

Selection Notes

Select this component when a highpass filter is required for the 13.5–15 GHz band using WR-75 waveguides. Consider the 0.2 dB insertion loss impact on overall system gain. Evaluate the 1.5 GHz bandwidth relative to your signal spectrum. Compare alternative filters if different cutoff frequencies or interface standards are necessary. Ensure the module form factor fits your assembly constraints.

Part Context

This part belongs to the Pasternack RF Filters category, specifically focusing on waveguide components. It is distinct from coaxial cable assemblies or adapters listed in other product lines. The WR-75 designation indicates a specific waveguide size standard used in microwave engineering. Pasternack manufactures this item as a dedicated signal conditioning module for specialized RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Verify exact WR-75 interface and frequency parameters when evaluating alternatives. Ensure replacement components match the 0.2 dB insertion loss requirement. Check for compatible mounting styles and module dimensions. Consult manufacturer catalogs for equivalent highpass waveguide filters.
