PE-W90TR1001

Overview

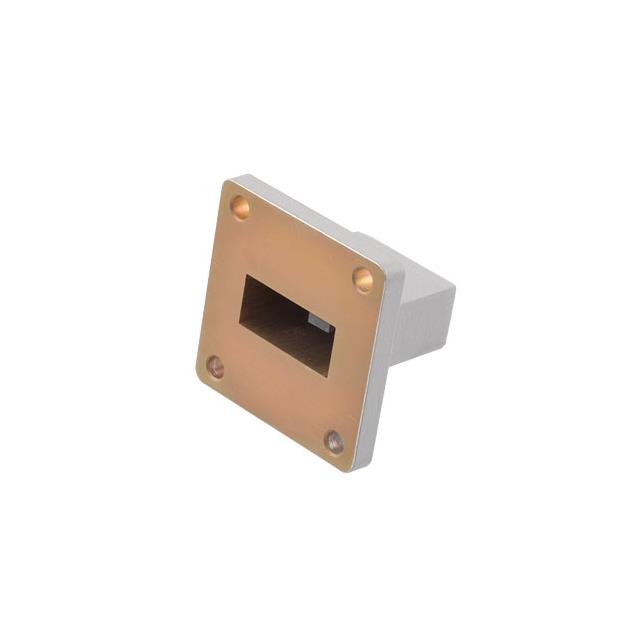

The PE-W90TR1001 is a WR-90 waveguide termination manufactured by Pasternack, designed for instrumentation-grade applications. It operates within a frequency range of 9 GHz to 10 GHz and supports an average maximum input power of 2 Watts. The component features an aluminum construction with a UG square cover flange for secure mounting. Key electrical performance includes an average maximum VSWR of 1.05:1, ensuring efficient signal absorption in radar and RF systems.

Feature Summary

• Instrumentation-grade waveguide termination design
• Aluminum housing with UG square cover flange
• High-performance signal absorption capability

Applications

• Radar system terminations
• RF instrumentation testing
• Waveguide circuit load matching

Procurement Notes

Verify the specific ordering suffix and flange configuration against the official Pasternack datasheet to ensure compatibility with existing waveguide interfaces. Confirm that the 2-watt power rating aligns with system requirements. Check for RoHS3 compliance status as indicated in distributor documentation. Ensure the UG square cover flange matches the installation environment constraints before finalizing procurement orders.

Selection Notes

Select this model when a WR-90 waveguide interface is required for frequencies between 9 GHz and 10 GHz. The 2-watt power handling capacity suits moderate-power applications. The aluminum construction offers durability for chassis-mounted installations. Consider the 1.05:1 VSWR specification for precision measurement environments where minimal reflection is critical for accurate signal analysis.

Part Context

This component belongs to Pasternack's WR-90 waveguide termination series, specifically engineered for X-band applications. It serves as a standard load for absorbing microwave energy in waveguide systems. The product line emphasizes high reliability and precise impedance matching for professional RF engineering tasks.

Replacement Considerations

Consult Pasternack technical support for direct cross-reference part numbers. Verify mechanical flange dimensions and waveguide internal specifications to ensure interchangeability without modifying the host system structure.
