PE11S1002

Overview

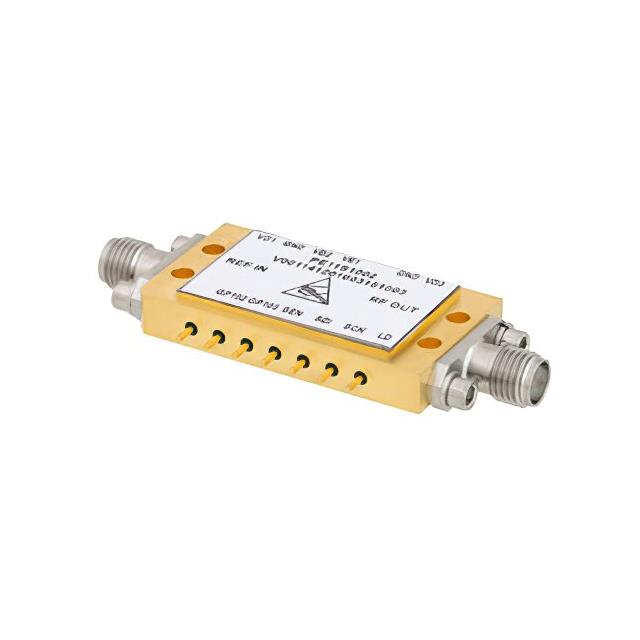

The PE11S1002 is an SPI PLL frequency synthesizer module manufactured by Pasternack. It operates within a frequency range of 2 GHz to 6 GHz and delivers a rated output power of +14 dBm. The device utilizes a 10 MHz reference input for frequency generation. The component is housed in a module package equipped with SMA connectors, designed for integration into RF and wireless systems requiring stable signal synthesis.

Feature Summary

• Integrates a Phase-Locked Loop (PLL) architecture for precise frequency synthesis
• Provides stable RF output via integrated SMA connectors
• Operates as a self-contained module for system integration

Applications

• RF signal generation systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and electrical characteristics directly from the manufacturer before procurement. Confirm that the SMA connector orientation and pinout match the target circuit design requirements. Ensure the operating temperature range aligns with the intended application environment to maintain performance stability.

Selection Notes

Select this module when a compact solution for 2-6 GHz synthesis is required. Consider the +14 dBm output power capability relative to downstream component sensitivity. Evaluate the 10 MHz reference requirement against available clock sources in the host system to ensure compatibility.

Part Context

This part belongs to Pasternack's SPI frequency synthesizer product line. It serves as a specialized component for generating precise frequencies in RF applications. The module format simplifies integration compared to discrete component designs, offering a standardized interface through SMA connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing system specifications if considering alternative synthesizer modules from other manufacturers.
