PE11S3902

Overview

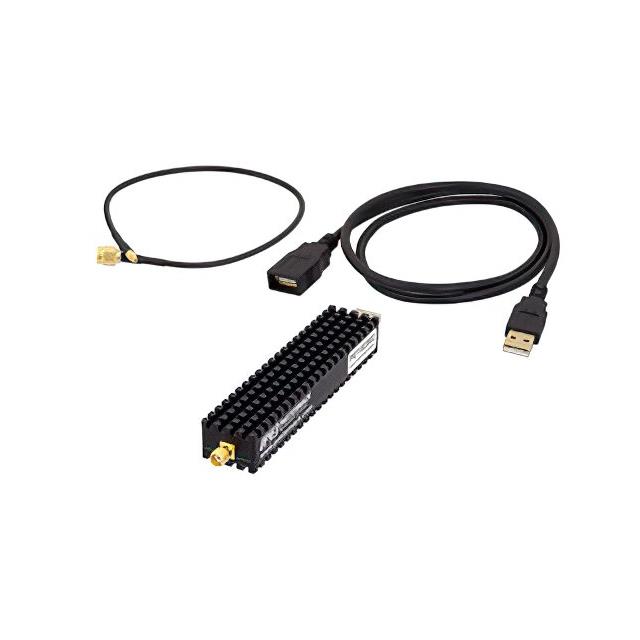

The Pasternack PE11S3902 is a USB PLL frequency synthesizer module designed for RF applications. It operates within a frequency range of 5 GHz to 10 GHz and provides an output power of -15 dBm. The device utilizes a 50 MHz reference input and features SMA connectors for signal interfacing. This component integrates phase-locked loop technology to generate stable frequencies across the specified band, suitable for radar and communication systems requiring precise frequency synthesis.

Feature Summary

• Integrates Phase Locked Loop (PLL) technology for stable frequency generation
• Operates within the 5 GHz to 10 GHz frequency range
• Features SMA connectors for signal interfacing
• Provides -15 dBm output power

Applications

• Radar systems
• Communication equipment
• RF test and measurement instruments

Procurement Notes

Verify the specific datasheet version and pinout configuration before integration. Confirm that the 50 MHz reference source matches the module's requirements. Ensure SMA connector compatibility with existing PCB traces or cable assemblies. Check for any RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this module when a compact solution is needed for generating frequencies between 5 GHz and 10 GHz. Consider the -15 dBm output power level against system loss budgets. Verify that the USB interface capability aligns with your control architecture. Evaluate the physical size constraints relative to other available synthesizer modules in the Pasternack portfolio.

Part Context

This component belongs to Pasternack's line of RF synthesizer modules. These modules are engineered to provide reliable frequency sources for various electronic systems. The PE11S3902 specifically addresses needs for broadband synthesis in the microwave region using a PLL architecture.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
