PE11S3906

Overview

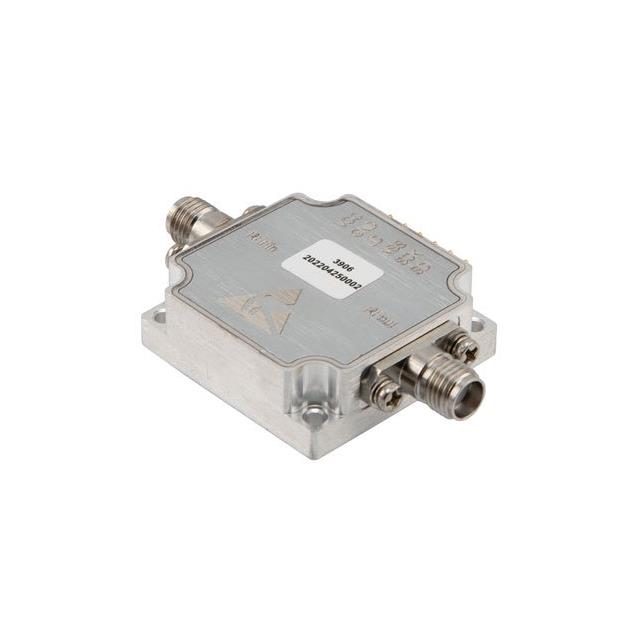

The Pasternack PE11S3906 is an SPI PLL frequency synthesizer module designed for radar applications. It operates within a frequency range of 1 GHz to 6.4 GHz with a step resolution of 50 Hz. The device delivers an output power greater than +15 dBm and features SMA connectors. It utilizes a Phase Locked Loop architecture to generate stable RF signals across the specified bandwidth.

Feature Summary

• Phase Locked Loop (PLL) architecture for precise frequency generation
• Integrated SMA connector interface for signal transmission
• Designed specifically for radar system applications

Applications

• Radar systems
• Frequency synthesis modules
• RF test equipment

Procurement Notes

Verify the specific datasheet version and manufacturing lot details when sourcing this component. Confirm that the SMA connector orientation and mounting type match the chassis requirements of the target assembly. Ensure the input reference signal specifications align with the module's operational parameters to guarantee performance stability.

Selection Notes

Select this module when a fixed-frequency synthesizer solution in the 1 GHz to 6.4 GHz range is required. The 50 Hz step size provides high resolution for narrow-band applications. Consider the +15 dBm output power capability for direct drive scenarios without additional amplification.

Part Context

This component belongs to Pasternack's SPI series of frequency synthesizers. It is categorized as a specialized RF module intended for integration into larger electronic systems rather than standalone use. The product focuses on providing reliable frequency generation for professional and industrial radio frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the frequency range, output power, and connector type precisely.
