PE11S3913

Overview

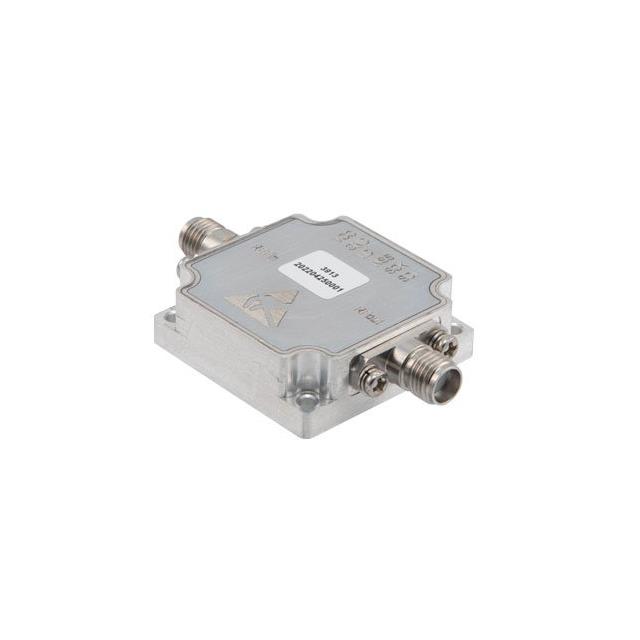

The Pasternack PE11S3913 is a USB PLL frequency synthesizer module designed for radar applications. It operates within a frequency range of 1 GHz to 6.4 GHz. The device features SMA connectors and utilizes a chassis mounting type. This component functions as a dedicated RF IC frequency synthesizer, providing stable signal generation capabilities suitable for specialized electronic systems requiring precise frequency control in the specified microwave band.

Feature Summary

• Operates as a USB Phase Locked Loop (PLL) frequency synthesizer
• Designed specifically for radar application environments
• Features SMA connector interfaces for signal integration
• Utilizes a chassis mounting configuration for system installation

Applications

• Radar signal generation systems
• RF test and measurement equipment
• Microwave communication subsystems
• Frequency synthesis modules for electronic warfare

Procurement Notes

Verify the specific firmware version and calibration status upon receipt. Confirm that the SMA connector polarity matches the receiving interface requirements. Ensure the chassis mounting holes align with the host system's mechanical constraints. Check for any required external power supply specifications not included in the module description. Validate regulatory compliance documentation for the intended deployment region.

Selection Notes

Select this model when a fixed 1 GHz to 6.4 GHz output range is sufficient for the application. Consider the USB interface requirement for control and data transfer. Evaluate the chassis mounting needs against available space in the target enclosure. Compare performance metrics such as phase noise and spurious emissions against alternative synthesizers if strict spectral purity is required for the specific radar or communication use case.

Part Context

This component belongs to Pasternack's family of RF frequency synthesizer modules. It shares functional similarities with models like the PE11S3901, which offers a broader 25 MHz to 6 GHz range. The PE11S3913 is distinct in its narrower high-frequency focus starting at 1 GHz, optimizing it for specific radar bands rather than wideband general-purpose synthesis.

Replacement Considerations

The PE11S3901 serves as a potential substitute offering a wider frequency range of 25 MHz to 6 GHz. Verify if the lower frequency capability of the PE11S3901 meets system requirements. Ensure mechanical compatibility remains unchanged between the two chassis-mounted modules.
