PE1611

Overview

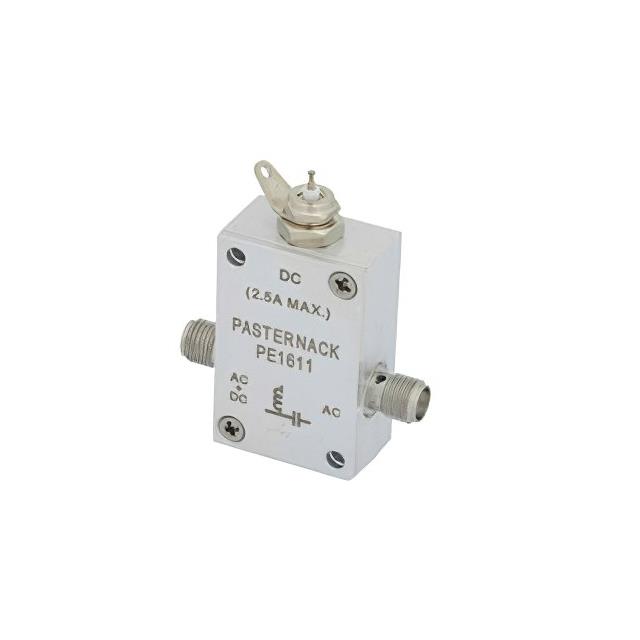

The Pasternack PE1611 is an SMA bias tee designed for RF signal conditioning applications. It operates within a frequency range of 10 MHz to 2.5 GHz. The device features an SMA female connector on the RF port. It is rated to handle a maximum DC current of 2,500 mA and a maximum DC voltage of 100 Volts. This component allows for the simultaneous transmission of RF signals and DC power over a single cable path.

Feature Summary

• Integrates RF and DC paths into a single interface
• Provides isolation between signal and bias lines
• Supports standard SMA female connectivity

Applications

• Biasing RF amplifiers
• Powering active antennas
• Test and measurement instrumentation

Procurement Notes

Verify that the required DC voltage does not exceed 100 Volts and the current load remains below 2,500 mA. Confirm that the operating frequency falls within the 10 MHz to 2.5 GHz range. Ensure system impedance matches the component specifications to maintain signal integrity during procurement and integration.

Selection Notes

Select this model when a compact solution is needed to combine DC power with RF signals in the specified frequency band. Consider the thermal management requirements associated with the 2,500 mA current rating. Verify that the SMA female interface aligns with existing cabling infrastructure before finalizing the selection.

Part Context

This component belongs to the category of RF bias tees manufactured by Pasternack Enterprises. These devices are engineered to facilitate the injection or extraction of DC bias onto RF transmission lines without disrupting the high-frequency signal performance.

Replacement Considerations

Public confirmed substitute part numbers only; omit otherwise.
