PE1612

Overview

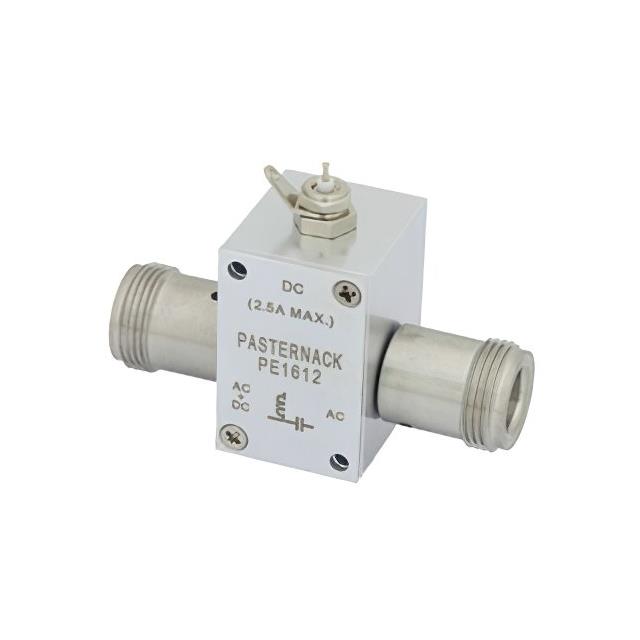

The Pasternack PE1612 is an N-type bias tee designed for RF signal conditioning applications. It operates within a frequency range of 10 MHz to 6 GHz, providing isolation between the RF port and the DC bias port. The component is rated to handle a maximum DC current of 2500 mA and a maximum DC voltage of 100 Volts. This configuration allows for the injection of DC power onto an RF transmission line without disrupting the RF signal integrity.

Feature Summary

• Integrates RF and DC paths into a single compact unit
• Provides electrical isolation between RF and DC ports
• Supports high DC current and voltage loads

Applications

• Biasing active RF components such as amplifiers
• Powering test and measurement equipment
• Signal conditioning in communication systems

Procurement Notes

Verify the specific datasheet version when ordering, as documentation indicates variations in frequency ratings (e.g., 2.5 GHz vs. 6 GHz) across different sources. Confirm that the required DC current and voltage ratings align with the 2500 mA and 100 VDC specifications. Ensure compatibility with N-type connectors for both RF and bias connections.

Selection Notes

Select this model when a robust bias solution is needed for frequencies up to 6 GHz. Consider the 2500 mA current rating for powering higher-drain active devices. Verify connector gender and cable assembly requirements if integrated solutions are preferred over discrete components.

Part Context

This component belongs to Pasternack's signal conditioning portfolio, specifically within the bias tee category. Bias tees are essential passive components used to combine or separate RF and DC signals. The PE1612 utilizes standard N-type interfaces, making it compatible with common laboratory and industrial RF infrastructure.

Replacement Considerations

Pasternack PE1616 is documented as a similar N-type bias tee operating from 10 MHz to 6 GHz with identical 2500 mA and 100 VDC ratings. Verify mechanical dimensions and pinout configurations before substitution.
