Product Detailed Parameters
- Description：10 MHz to 2.5 GHz N Broadband Bi
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：10MHz ~ 2.5GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

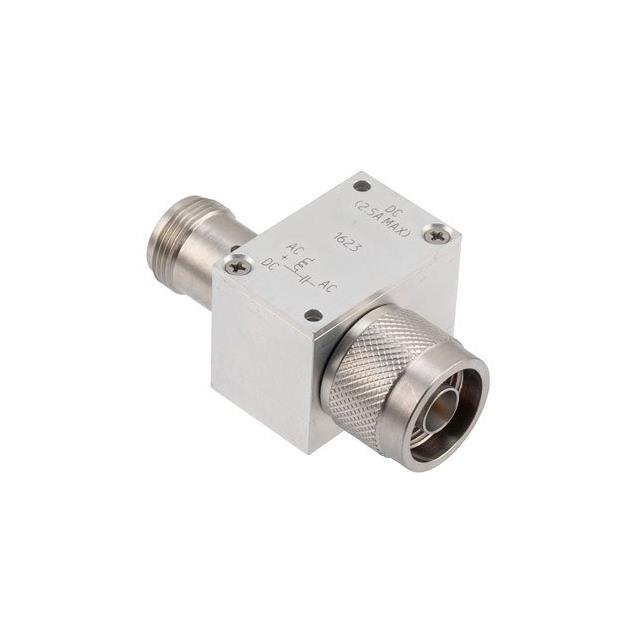

The Pasternack PE1623 is a broadband bias tee designed for signal conditioning applications. It operates within a frequency range of 10 MHz to 2.5 GHz and features an N-type male output connector. The device supports a maximum current rating of 2.5 Amps and a maximum voltage of 100 Volts. It functions as a three-port network, allowing the injection or extraction of DC bias onto RF signals without disrupting the RF path.
Feature Summary
- Provides broadband DC bias coupling across a wide frequency spectrum
- Features an N-type male connector interface for secure attachment
- Supports high current and voltage ratings for robust operation
Applications
- Adjusting DC bias points of electrical components in RF systems
- Signal conditioning in test and measurement setups
- Integrating DC power with RF signals in communication equipment
Procurement Notes
Verify that the required connector type matches the N-type male specification. Confirm that the operational voltage does not exceed 100 Volts and the current load remains within the 2.5 Amp limit. Ensure the frequency requirements fall within the 10 MHz to 2.5 GHz range. Check datasheet for specific insertion loss characteristics relevant to your application bandwidth.
Selection Notes
Select this component when a broadband solution is needed for biasing RF circuits between 10 MHz and 2.5 GHz. The N-type connector offers durability and low loss compared to smaller connectors. Consider the 2.5 Amp current capacity for powering higher-drain components. Verify compatibility with existing system voltage levels before integration.
Part Context
This part belongs to the Pasternack signal conditioning category, specifically bias tees. These devices are essential for separating or combining DC and RF signals in electronic systems. The PE1623 utilizes standard N-type interfaces common in industrial and telecommunications infrastructure.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for equivalent models with matching frequency ranges and connector types.
