PE1624

Overview

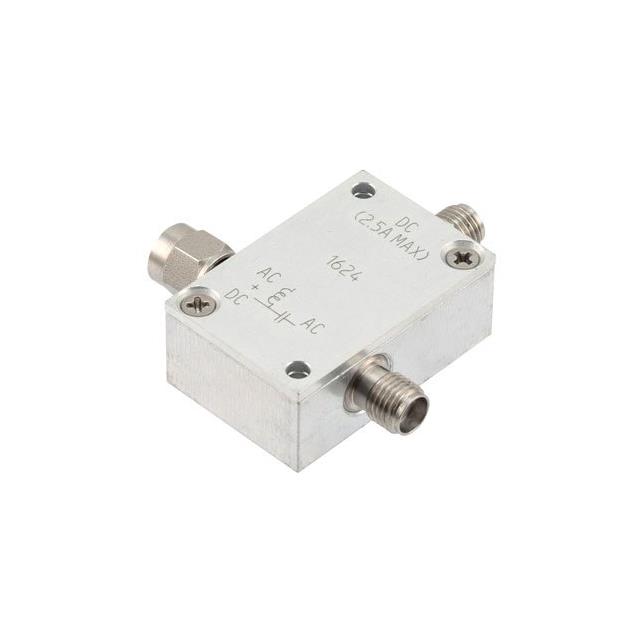

The Pasternack PE1624 is a broadband bias tee designed for RF and wireless applications. It operates within a frequency range of 10 MHz to 2.5 GHz. The device features an SMA male input connector. It is rated to handle a maximum current of 2.5 Amps and a maximum voltage of 100 Volts. The unit supports a power rating of 5 Watts. This three-port network allows for the adjustment of DC bias points on electrical components without affecting other signal paths.

Feature Summary

• Provides a three-port network configuration for signal conditioning
• Enables DC bias point adjustment without impacting other components
• Features SMA male input connectivity

Applications

• RF and wireless system testing
• Adjusting DC bias points in electrical circuits
• Signal conditioning in broadband applications

Procurement Notes

Verify the specific SMA male input configuration and electrical ratings against your system requirements. Confirm that the 2.5 Amp current and 100 Volt voltage limits are sufficient for your application. Ensure compatibility with the 10 MHz to 2.5 GHz frequency range. Check for any specific handling or installation guidelines provided by the manufacturer.

Selection Notes

Select this component when a broadband bias tee is required for frequencies between 10 MHz and 2.5 GHz. Consider the 2.5 Amp and 100 Volt ratings to ensure they meet your circuit's demands. The SMA male interface must match your existing connection infrastructure. Evaluate the 5 Watt power handling capability relative to your operational power levels.

Part Context

This part belongs to the Pasternack PE1624 series of bias tees. These devices are engineered for precise signal conditioning in RF environments. The series focuses on maintaining signal integrity while introducing DC bias. The PE1624 specifically targets broadband applications requiring reliable performance up to 2.5 GHz.

Replacement Considerations

No public confirmed substitute part numbers are available.
