PE1625

Overview

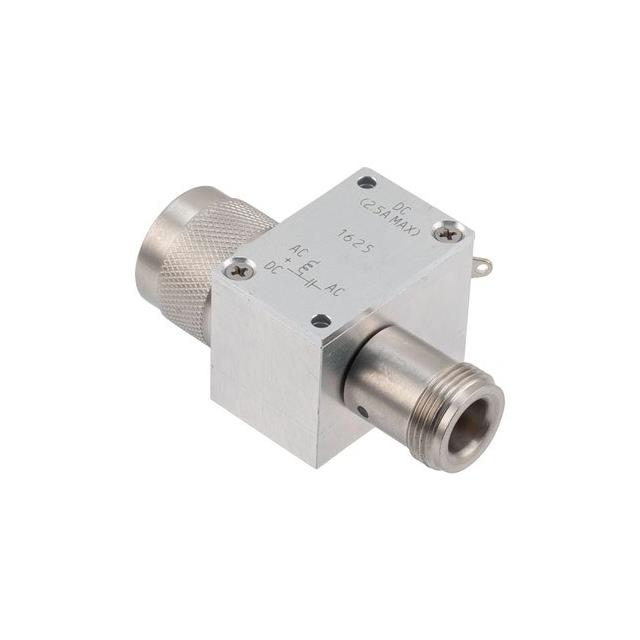

The Pasternack PE1625 is an N Broadband Bias Tee designed for signal conditioning applications. It features a male input connector and supports a frequency range from 10 MHz to 2.5 GHz. The component is rated to handle up to 2.5 Amps of current and withstand voltages up to 100 Volts on the DC pin. This device integrates RF and DC paths, allowing simultaneous transmission without interference.

Feature Summary

• Integrates RF and DC signal paths within a single compact unit
• Supports high current handling capabilities for power delivery
• Provides isolation between radio frequency and direct current channels

Applications

• Industrial systems requiring combined signal and power transmission
• Consumer electronics utilizing bias tees for antenna feeding
• Digital systems needing isolated DC power injection

Procurement Notes

Verify that the specific order matches the male input configuration and N-series interface requirements. Confirm that the application voltage does not exceed 100 Volts and current remains within the 2.5 Amp rating. Ensure compatibility with the operating frequency range of 10 MHz to 2.5 GHz before finalizing procurement decisions.

Selection Notes

Select this component when a robust solution for combining RF signals with DC power is required. The N-series connector provides mechanical stability for industrial environments. Consider the 2.5 Amp current rating for applications demanding significant power delivery alongside signal transmission.

Part Context

This bias tee belongs to the broader category of RF signal conditioning components manufactured by Pasternack. It serves as a critical interface element in wireless infrastructure, enabling efficient power management while maintaining signal integrity across the specified broadband frequency spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available.
