PE1627

Overview

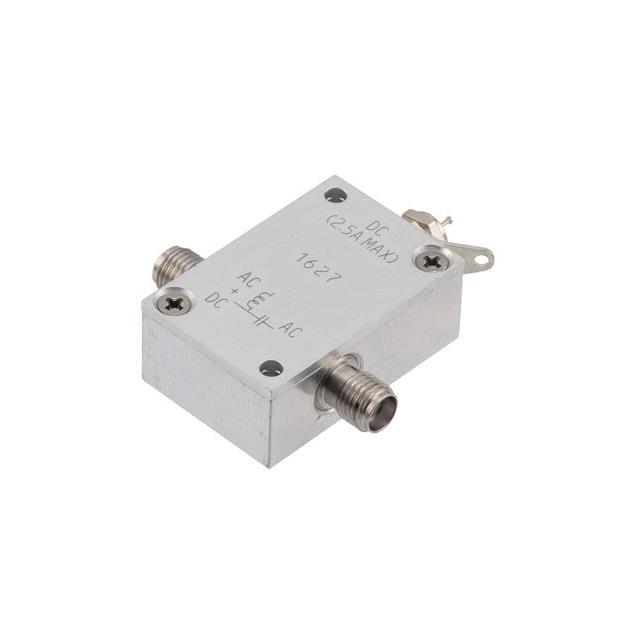

The Pasternack PE1627 is an SMA broadband bias tee designed for RF and wireless applications. It operates within a frequency range of 10 MHz to 6 GHz. The device features three ports, allowing it to adjust the DC bias point of electrical components without affecting other signals. It is rated to handle up to 2.5 Amps of current and supports a voltage rating of 100 Volts at the DC pin. The unit utilizes SMA connectors for interface.

Feature Summary

• Provides a three-port network solution for adjusting DC bias points in RF circuits
• Maintains signal integrity by isolating DC injection from RF paths
• Supports high current capacity with a 2.5 Amp rating
• Features SMA connectors for standard RF interfacing

Applications

• Adjusting DC bias points for RF components
• Wireless communication systems requiring signal conditioning
• RF test and measurement setups

Procurement Notes

Verify that the specific application requirements align with the 10 MHz to 6 GHz operational bandwidth and the 2.5 Amp current limit. Confirm that the 100 Volt DC pin rating is sufficient for the intended circuit design. Ensure compatibility with existing SMA connector interfaces on both the RF and DC lines before finalizing procurement decisions.

Selection Notes

Select this component when a broadband bias tee is required for frequencies extending up to 6 GHz. Consider the 2.5 Amp current rating and 100 Volt DC specification to ensure safe operation within the target system. Verify that the SMA interface matches the surrounding hardware infrastructure and that the physical form factor fits the assembly constraints.

Part Context

The PE1627 belongs to Pasternack's portfolio of RF and wireless signal conditioning components. As a bias tee, it serves as a passive network element used to inject DC power into RF lines or extract DC information from RF signals. This specific model emphasizes broadband performance across the specified frequency range while maintaining robust electrical ratings for demanding applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
