PE1630

Overview

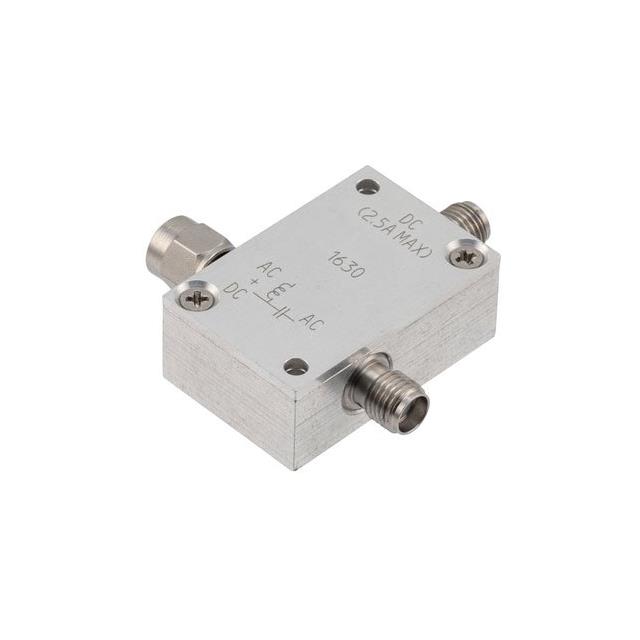

The Pasternack PE1630 is a broadband bias tee designed for RF signal conditioning applications. It operates within a frequency range of 10 MHz to 12 GHz and features SMA connectors with male input configuration. The device is rated to handle up to 2.5 Amps of current and supports a voltage rating of 100 Volts DC. It functions as a three-port network, allowing the addition or extraction of DC bias without affecting the RF signal path. The unit maintains operational stability across a temperature range of -55°C to 105°C.

Feature Summary

• Integrates DC bias into RF signals using a three-port network architecture
• Maintains signal integrity across a wide 10 MHz to 12 GHz bandwidth
• Supports high current loads up to 2.5 Amps and 100 Volts DC
• Utilizes SMA male connectors for reliable interconnection

Applications

• Biasing active RF components such as amplifiers and oscillators
• Signal conditioning in test and measurement equipment
• Integration into wireless communication systems requiring DC power injection
• Broadband RF circuit design and prototyping

Procurement Notes

Verify the specific connector gender and port configuration against project requirements before ordering. Confirm that the operating voltage and current ratings align with the target component's specifications. Ensure environmental conditions fall within the stated temperature range. Cross-reference datasheet parameters for impedance and frequency response to guarantee system compatibility.

Selection Notes

Select this component when a broadband solution is required for frequencies extending up to 12 GHz. Consider the 2.5 Amp current rating for powering higher-drain devices. The SMA interface ensures compatibility with standard RF infrastructure. Evaluate thermal management needs given the -55°C to 105°C operating range for harsh environments.

Part Context

The PE1630 belongs to Pasternack's Coaxial Bias Tees series, which provides signal conditioning solutions for RF systems. These components are engineered to separate or combine DC and RF signals efficiently. The series supports various frequency ranges and power levels, catering to diverse electronic design requirements from laboratory testing to industrial applications.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical parameters such as frequency range, current rating, and connector type match exactly. Ensure physical dimensions and mounting styles are compatible with existing PCB layouts or chassis designs.
