Product Detailed Parameters
- Description：50 KHz to 18 GHz SMA Broadband B
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：50kHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

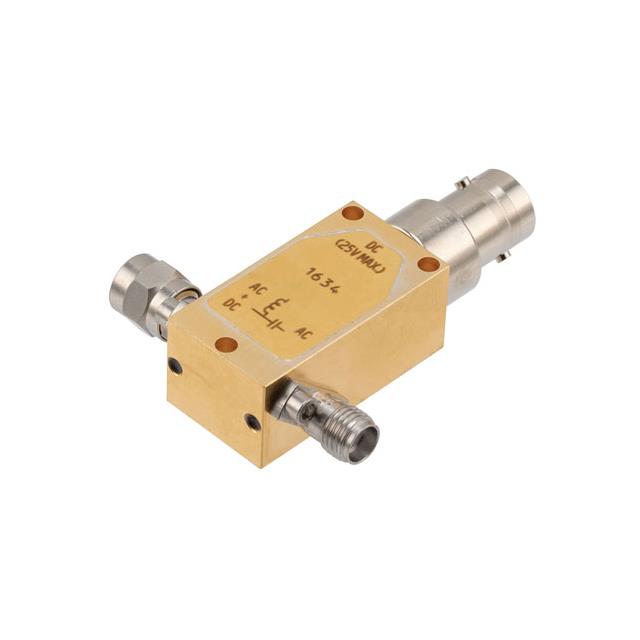

The Pasternack PE1634 is a broadband RF bias tee designed for signal conditioning applications. It operates across a frequency range of 50 kHz to 18 GHz, providing versatile performance for high-frequency circuits. The device features an SMA male input connector and includes a DC BNC connector for power injection. It is rated to handle up to 750 mA current and 25 Volts DC, ensuring reliable operation in demanding environments. This component integrates RF and DC paths efficiently within a compact module package.
Feature Summary
- Broadband frequency coverage from 50 kHz to 18 GHz
- SMA male input with integrated DC BNC connector
- Rated for 750 mA current and 25 Volts DC
Applications
- RF circuit biasing
- Signal conditioning modules
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the required current and voltage ratings (750 mA, 25 V) align with your system design constraints. Ensure compatibility with SMA male inputs and BNC DC connections. Check for any RoHS compliance requirements if applicable to your procurement standards.
Selection Notes
Select this component when a wide bandwidth up to 18 GHz is required for biasing RF signals. The inclusion of both SMA and BNC connectors simplifies integration into existing test setups. Consider the 750 mA rating to ensure it meets the power delivery needs of the connected devices without overheating or performance degradation.
Part Context
The PE1634 belongs to Pasternack's line of RF wireless miscellaneous components and signal conditioning modules. It serves as a passive interface device that combines radio frequency transmission with direct current power injection. This type of component is essential for powering active RF elements while maintaining signal integrity across a broad spectrum.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. When replacing, ensure the new component matches the 50 kHz to 18 GHz frequency range, SMA male input, and BNC DC output configuration. Verify that the current and voltage ratings are equal to or exceed the original specifications.
