Product Detailed Parameters
- Description：50 KHz to 18 GHz SMA Broadband B
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：50kHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

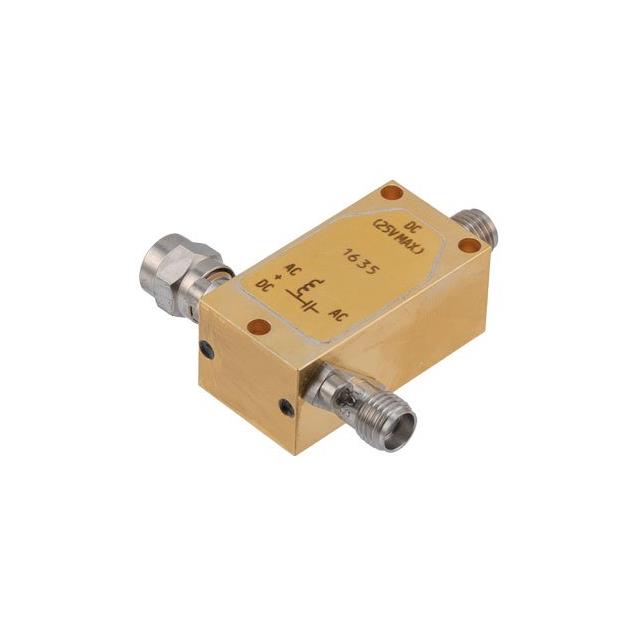

The Pasternack PE1635 is a broadband bias tee designed for RF signal conditioning applications. It operates within a frequency range of 50 kHz to 18 GHz, providing DC injection capabilities alongside RF transmission. The device features a male SMA connector input and is rated for operation up to 750 MHz at 25 Volts. Constructed with SMA connectors, this component serves as a general-purpose solution for integrating DC power into RF circuits without disrupting the signal path.
Feature Summary
- Provides simultaneous DC power injection and RF signal transmission through a single port
- Operates across a wide broadband frequency spectrum from 50 kHz to 18 GHz
- Features a male SMA connector interface for standard coaxial integration
Applications
- RF circuit biasing for amplifiers and mixers
- Test and measurement equipment signal conditioning
- Wireless communication system component powering
Procurement Notes
Verify the specific datasheet version for the PE1635 to confirm voltage ratings and frequency limits. Ensure compatibility with SMA male interfaces in your design. Check manufacturer documentation for thermal management requirements during high-power operation. Confirm that the 25-volt rating aligns with your DC supply constraints before procurement.
Selection Notes
Select the PE1635 when a broadband bias tee is required for frequencies extending up to 18 GHz. Consider this model if a male SMA input is necessary for your PCB or cable assembly. Evaluate the 25-volt maximum rating against your DC bias requirements. Compare insertion loss specifications in the official datasheet against your system sensitivity needs.
Part Context
This component belongs to Pasternack's signal conditioning portfolio, specifically focusing on bias tees. It complements other RF interconnect solutions by enabling DC/RF separation and combination. The PE1635 is part of a series of broadband components designed for high-frequency applications requiring reliable signal integrity and power delivery.
Replacement Considerations
Consult the manufacturer's substitution guide for verified equivalent parts. Ensure any replacement maintains the 50 kHz to 18 GHz frequency range and SMA male configuration. Verify that alternative bias tees meet or exceed the 25-volt rating and impedance characteristics.
