PE1636

Overview

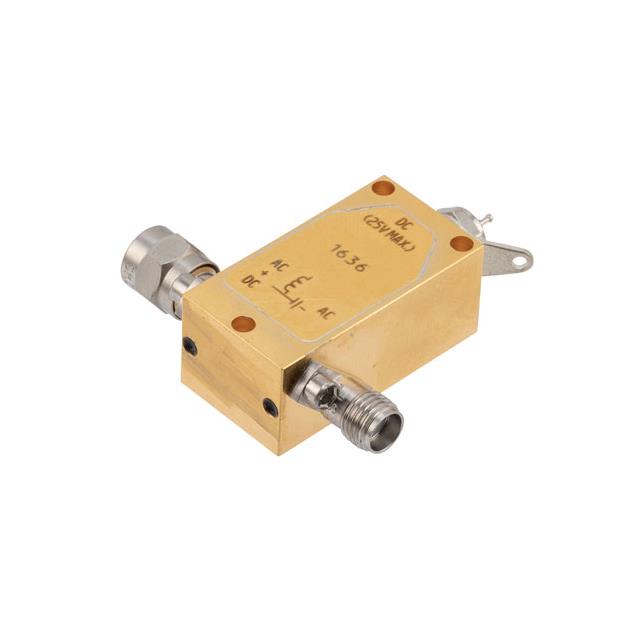

The PE1636 is a broadband bias tee manufactured by Pasternack, designed for signal conditioning applications. It features an SMA male input connector and supports a frequency range from 50 kHz to 18 GHz. The device is rated for operation up to 750 MHz with a maximum DC voltage of 25 volts on the pin. This component integrates RF and DC paths, allowing simultaneous transmission without interference. It is constructed for general-purpose use in test and measurement environments requiring reliable signal injection across wide bandwidths.

Feature Summary

• Provides broadband bias-tee functionality for combining RF and DC signals
• Features SMA male connector interface for standard integration
• Supports high-frequency operation extending to 18 GHz
• Rated for specific DC voltage limits on the power pin

Applications

• General-purpose RF signal testing and measurement
• Instrumentation equipment requiring DC bias injection
• Telecommunications system component integration

Procurement Notes

Verify the specific datasheet version for the PE1636 to confirm electrical tolerances and connector gender details. Ensure compatibility with system impedance requirements before integration. Check manufacturer documentation for any updates regarding RoHS compliance status or packaging specifications. Confirm that the 25-volt DC rating aligns with the target circuit design parameters.

Selection Notes

Select the PE1636 when a wideband solution is required for frequencies up to 18 GHz. Consider this model if SMA connectivity is necessary for the system interface. Evaluate the 750 MHz operational limit against the specific application's frequency needs. Ensure the DC voltage requirements do not exceed the specified 25-volt rating for safe operation.

Part Context

The PE1636 belongs to Pasternack's line of signal conditioning components, specifically within the RF misc ICs and modules category. It serves as a passive interconnect device facilitating the combination of radio frequency energy with direct current power. This product type is distinct from active amplifiers or filters, focusing solely on signal path management and biasing capabilities.

FAQ

What is the maximum DC voltage rating for the PE1636?

The PE1636 is rated for a maximum DC voltage of 25 volts on its pin.

Does the PE1636 support frequencies above 1 GHz?

Yes, the device supports a frequency range from 50 kHz to 18 GHz.
