Product Detailed Parameters
- Description：12 KHz to 40 GHz, 2.92mm Broadba
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Bias Tee
- Frequency：12kHz ~ 40GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

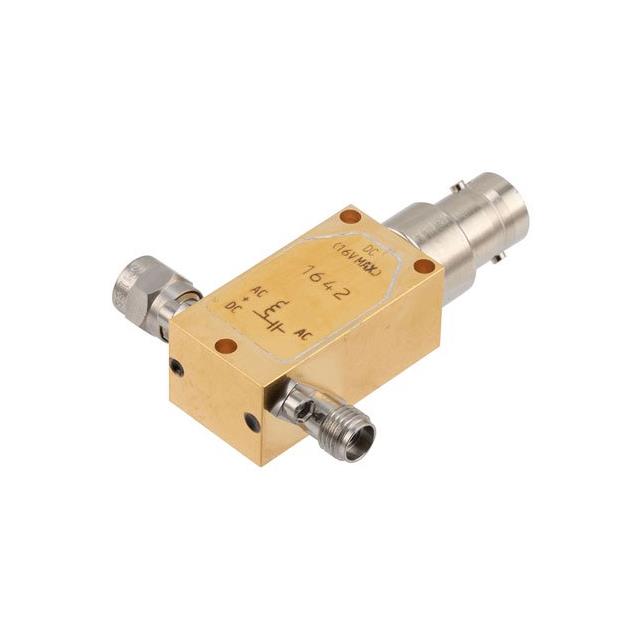

The PE1642 is a 2.92mm broadband bias tee manufactured by Pasternack, designed for frequencies ranging from 12 kHz to 40 GHz. It features a male input connector and supports a maximum voltage of 16 V and a maximum current of 150 mA. The component exhibits an insertion loss between 1.2 dB and 3 dB across its operational bandwidth. This three-port network allows for the adjustment of DC bias points in electrical components without affecting RF signal integrity.
Feature Summary
- Provides broadband DC biasing capability across a wide frequency range up to 40 GHz
- Utilizes a 2.92mm male connector interface for high-frequency signal transmission
- Functions as a three-port network to isolate DC injection from RF paths
Applications
- Biasing active microwave components such as amplifiers and mixers
- Integration into test and measurement setups requiring precise DC control
- RF circuit design involving high-frequency signal processing
Procurement Notes
Verify the specific datasheet version for the PE1642 to confirm exact insertion loss values at target frequencies. Ensure that the application environment does not exceed the rated 16 V or 150 mA limits. Confirm connector compatibility with existing 2.92mm systems before integration.
Selection Notes
Select the PE1642 when a broadband bias solution is required for frequencies extending to 40 GHz. Consider the 2.92mm form factor for compatibility with high-density RF assemblies. Evaluate the insertion loss specifications against system budget requirements to ensure signal integrity is maintained.
Part Context
The PE1642 belongs to Pasternack's portfolio of RF and wireless components, specifically within their bias tee category. It serves as a critical interconnect element for managing DC power delivery in high-frequency RF circuits, complementing other passive and active components in complex signal chains.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify functional equivalence carefully if considering alternative manufacturers.
