PE1645

$2,669.68

Description：12 KHz to 40 GHz, 2.92mm Broadba
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:68cee38d8ab9 Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：12 KHz to 40 GHz, 2.92mm Broadba
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Bias Tee
Frequency：12kHz ~ 40GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE1645

Overview

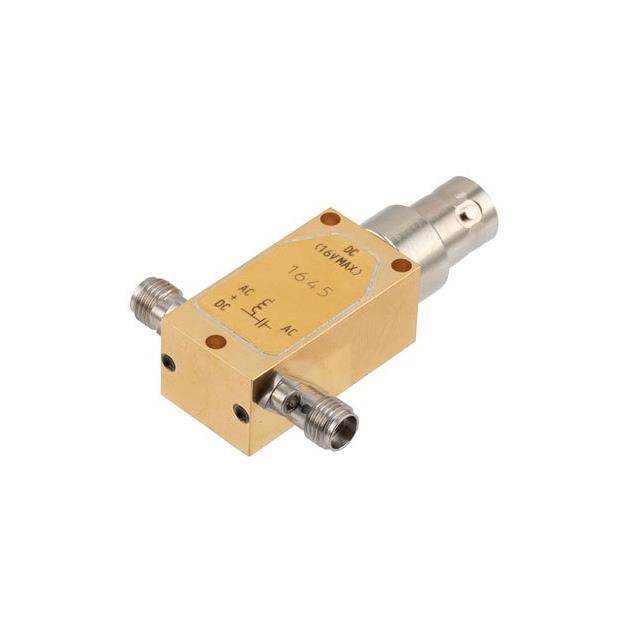

The PE1645 is a broadband bias-tee manufactured by Pasternack, designed for RF and wireless applications. It operates across a frequency range of 12 kHz to 40 GHz using a 2.92mm interface. The device features a DC BNC connector for power injection. It is rated for a maximum current of 150 mA and a voltage of 16 Volts. This component facilitates the simultaneous transmission of RF signals and DC bias on a single line.

Feature Summary

Supports ultra-broadband operation from low frequencies up to 40 GHz
Integrates a DC BNC connector for convenient bias supply connection
Utilizes 2.92mm interface technology for high-frequency performance

Applications

RF signal testing and measurement setups
Wireless communication system biasing
Component characterization in laboratory environments

Procurement Notes

Verify that the required DC voltage does not exceed 16 Volts and the current draw remains within the 150 mA limit. Confirm that the 2.92mm interface is compatible with the existing RF chain. Ensure the BDC connector aligns with available power supply interfaces. Check datasheet specifications for thermal management requirements during continuous operation.

Selection Notes

Select this model when a wide bandwidth extending to 40 GHz is necessary. Choose based on the availability of a BNC port for DC input. Consider the physical size constraints relative to the 2.92mm form factor. Evaluate if the specified current rating meets the load requirements of the connected device.

Part Context

This part belongs to Pasternack's portfolio of RF and wireless components. Bias-tees are essential passive devices used to combine or separate DC and RF signals. The PE1645 specifically addresses needs for high-frequency applications requiring precise bias injection without signal degradation.
