PE1647

Overview

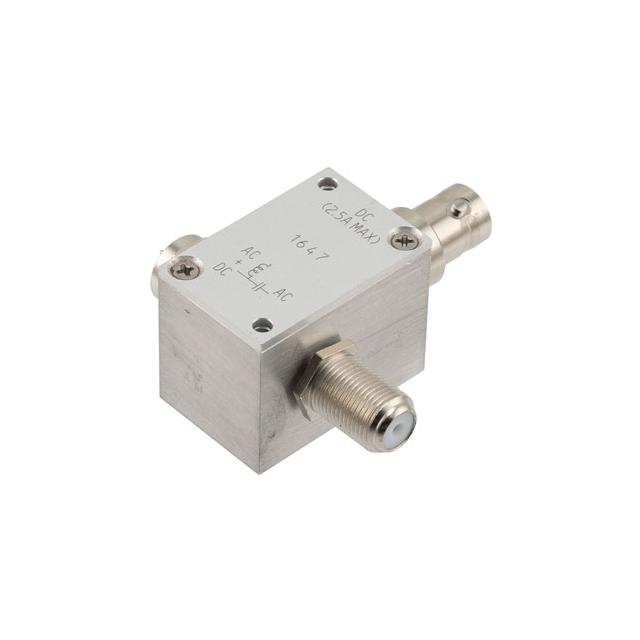

The Pasternack PE1647 is a Type F 75 Ohm Bias Tee designed for RF and wireless applications. It operates within a frequency range of 10 MHz to 3 GHz. The component features a DC BNC connector for bias injection. It is rated for a maximum current of 2.5 Amps and a voltage of 100 Volts. This device facilitates signal conditioning by combining DC power with RF signals on a single line.

Feature Summary

• Integrates DC bias into RF transmission lines via a dedicated BNC port
• Supports 75 Ohm impedance matching for Type F interfaces
• Rated for high current handling up to 2.5 Amps

Applications

• RF signal conditioning in broadcast systems
• Integration with Type F coaxial infrastructure
• Bias injection for active antenna or amplifier circuits

Procurement Notes

Verify the specific connector gender and pin configuration against the official datasheet before integration. Confirm that the 100 Volt and 2.5 Amp ratings align with the target circuit's electrical requirements. Ensure the operating frequency range covers the intended signal spectrum without degradation.

Selection Notes

Select this component when a 75 Ohm impedance match is required for Type F connections. It is suitable for applications needing simultaneous DC power delivery and RF signal transmission. Consider the physical size of the BNC connector for panel mounting constraints.

Part Context

This part belongs to Pasternack's signal conditioning portfolio, specifically focusing on bias tees. It addresses the need for combining power and data in RF environments using standard 75 Ohm connectors. The design supports reliable operation across the specified microwave frequency band.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
